点击放大查看

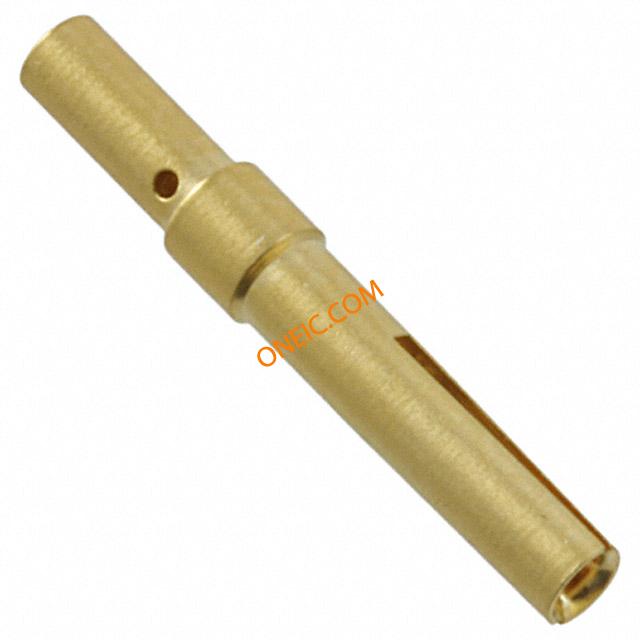

09670007476
| Manufacturer | |
| Description | DSUB MIX FE SIG CR CONT AWG26-28 Turned contact 24-28 AWG F D-Sub Contacts D SUB FE turned cont AWG 24-28 PL1 DSUBFEturnedcontactAWG24-28PL1 Harting D-Sub Standard 系列 母 压接端接 圆形 连接器 触芯, 使用于D-sub 连接器, 28 → 24 AWG 线规格 |
| Category |
商业参数
| 零件号别名 | 000 09 09-67-000-7476 67 7476 | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
机械参数
| 长度 | 13.6mm | 包装方式 | Bulk |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 触点形式 | Machined | 触点尺寸 | 1.8mm |
| 触头类型 | Female Socket | 连接器类型 | 母座 |
| 接触镀层 | Gold | 触头材料 | Nickel |
| 端接排数 | 压接 | 接触件端接 | Crimp |
| 线规或范围 - mm² | 28 → 24 AWG | ||
产品信息
| 类型 | Signal | 连接器性别 | Female |
| 系列 | D-Sub Standard | 适用产品/相关产品 | D-Sub Connector |
