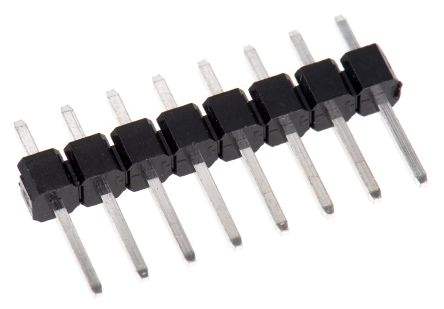

点击放大查看
M20-9990846
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | :750V | Voltage - Working | :750V |
| Contact Resistance | :30mohm | Voltage - Breakdown | :750V |
| Current Rating (Max) | 3A | Insulation Resistance | :1000Mohm |
Mechanical
| Pitch | 2.54mm | Weight | 0.048 |
| Termination | Solder | Lead Spacing | :2.54mm |
| Mounting Type | Straight | Contact Finish | Tin |
| Number of Rows | 1 | Package / Case | :Black, Glass Filled Polyester UL94V-0 |
| Contact Material | Brass | Termination Style | Through Hole |
| Number of Contacts | 8 | Contact Termination | :Through Hole Vertical |
Product Info
| Type | Unshrouded Header | Gender | :Header |
| Series | M20-99 | Product Type | Headers |
Environmental
| Mating Cycles | :50 | Operating Temperature | :105°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- M20-999.PDF
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
