M22-2012005
| Manufacturer | |
| Description | HARWIN M22-20 Series 2mm Pitch 20 Way 1 Row Straight PCB Header, Solder Termination, 1A HEADER, VERTICAL, 1ROW, 20WAY HEADER,SIL,VERT,20WAY,2M HARWIN M22 系列 2mm节距 20路 (1排) 直 引脚管座, 焊接端接, 1A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency | :UL 94V-0 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :HARWIN - M22 Series | Voltage Rating | :250V |
| Voltage - Working | :250V | Contact Resistance | :20mohm |
| Current Rating (Max) | 1A | Current - Max/Contact | :2A |
| Insulation Resistance | :10000Mohm | ||
Mechanical
| Pitch | 2mm | Weight | 0.051 |
| Material | :Glass Filled Polyester | Termination | Solder |
| Lead Spacing | :2mm | Mounting Type | Straight |
| Contact Finish | :Gold | Number of Rows | 1 |
| Package / Case | :Glass Filled Thermoplastic | Contact Material | Phosphor Bronze |
| Color - Connectors | :Black | Number of Contacts | 20 |
| Contact Termination | :Through Hole Vertical | 1st Connector Mounting Type | :Straight |
Product Info
| Type | Unshrouded Header | Gender | :Header |
| Series | M22-20 | CAD Drawing | 3D CAD Model |
Environmental
| Mating Cycles | :50 | Operating Temperature | :105°C |
Documents & Media
PDF Document
Similar Parts
M22-1900005
HARWIN
Headers & Wire Housings JUMPER SOCKET OPEN TOP BLACK GOLD Conn Jumper SKT 2 POS 2mm ST JUMPER SOCKET, BLACK, PK25
$1.9904
Details
M22-1920005
HARWIN
Headers & Wire Housings JUMPER SOCKET RED Conn Jumper SKT 2 POS 2mm ST JUMPER SOCKET, RED, PK25
$0.7956
Details

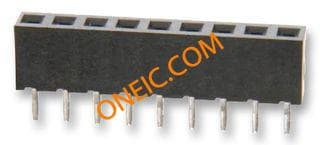

M22-7132042
