M22-2020405
| Manufacturer | |
| Description | HARWIN M22-20 Series 2mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 4+4P 3.5MM PIN HDR 2MM PITCH DIL VERT Conn Unshrouded Header HDR 8 POS 2mm Solder ST Thru-Hole Bag HEADER, VERTICAL, 2ROW, 4WAY HEADER,DIL,VERT,4WAY,2MM HARWIN M22 系列 2mm节距 8路 (2排) 直 引脚管座, 焊接端接, 1A , 通孔 |
| Category |
Business
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-0 |
Electrical
| Range deg/s | :HARWIN - M22 Series | Voltage Rating | 650 V |
| Switch Function | Unlatched | Voltage - Working | :250V |
| Contact Resistance | 20 mohm | Current Rating (Max) | 1A |
| Current - Max/Contact | :2A | Insulation Resistance | :10000Mohm |
Mechanical
| Depth | 4 mm | Pitch | 2mm |
| Height | 5 mm | Weight | 0.018 |
| Packaging | Bag | Row Spacing | 2 mm |
| Termination | Solder | Lead Spacing | :2mm |
| Housing Color | Black | Mounting Type | Straight |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | :Glass Filled Thermoplastic |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 8 mm | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 8 |
| Contact Termination | :Through Hole Vertical | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | M22-20 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
M22-7140442
HARWIN
HARWIN 2mm 8 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 4+4 PIN DIL VERTICAL GOLD+TIN SOCKET Conn Socket Strip SKT 8 POS 2mm Solder ST Thru-Hole Tube SOCKET, VERTICAL, 2ROW, 4WAY HARWIN 2行 8路 直 2mm节距 通孔 印刷电路板插座, 插座板

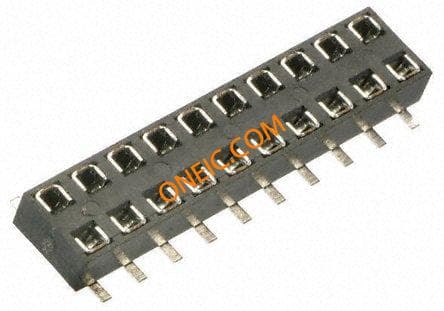

M22-6360442
