M22-3010200
| Manufacturer | |

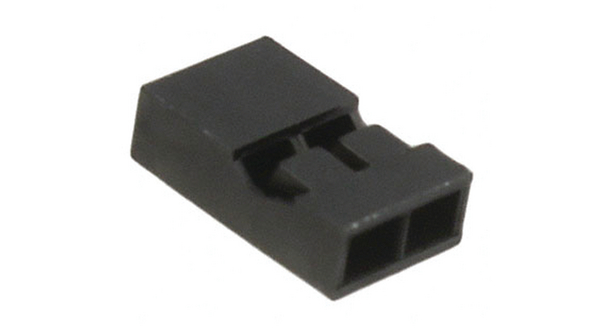

| Description | Headers & Wire Housings 2 PIN SIL FEMALE HOUSING CRIMP HOUSING, 1 ROW, 2WAY Crimp housing 1 x 2P, M22-3010200, Harwin |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-0 |
Electrical
| Range deg/s | :HARWIN - M22-30 Series | Voltage Rating | :250V |
| Voltage - Working | :250V | Current Rating (Max) | 2 A |
| Insulation Resistance | :10000ohm | ||
Mechanical
| Pitch | 2 mm | Weight | 0.002 |
| Material | :Black Nylon UL94V-0 | Termination | :Crimp |
| Mounting Type | Vertical | Contact Finish | :- |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | :Phosphor Bronze | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 2 | Contact Termination | :Crimp |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Gender | :Receptacle | Series | M22-301 |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Operating Temperature | :90°C | ||
Documents & Media
PDF Document
