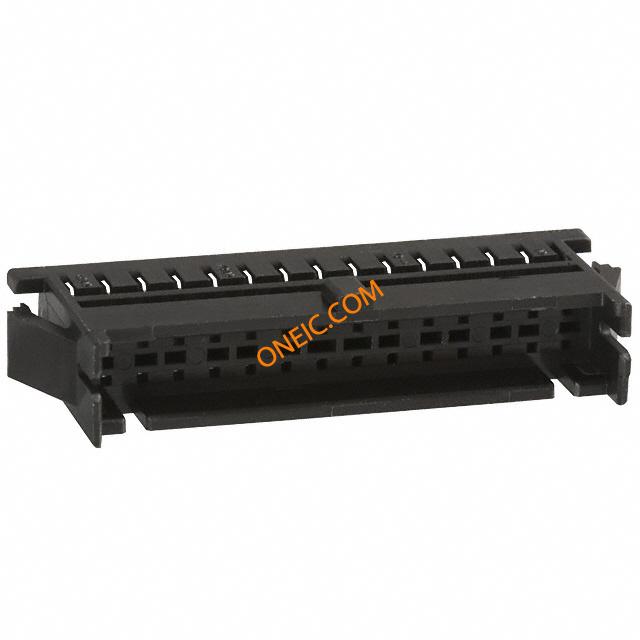

DF11-28DEP-2C
| Manufacturer | |
| Description | Headers & Wire Housings 2MM PLUG HOUSING 28P DUAL ROW CRIMP CONN PLUG HOUSING 28POS 2MM Conn Housing RCP 28 POS 2mm Crimp ST Panel Mount Bag |
| Category |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2 A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | Black | 深度 | 13 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 6.9 mm |
| 包装方式 | Bulk | 导线线规 | 22-30 AWG |
| 排间距 | 0.079" (2.00mm) | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.079" (2.00mm) |
| 外壳颜色 | Black | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 35 mm | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 28 |
| 接触件端接 | Crimp | 位数 | 28 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | DF11 |
| 已删除 | Compliant | 产品子类型 | Plugs - Housings |
| 输出配置 | Panel Mount, Snap-In | ||
环境参数
| 工作温度 | -30C to 85C | ||
