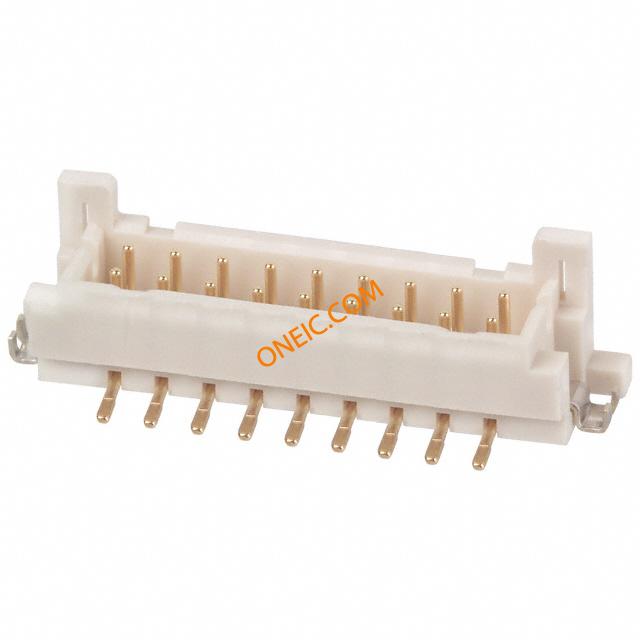

DF11G-18DP-2V(50)
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 2MM V PCB HEADER 18P DR SMT GLD CONN HEADER 18POS 2MM SMD GOLD Headers & Wire Housings 2MM V PCB HEADER 18P DR SMT GLD Conn Shrouded Header HDR 18 POS 2mm Solder ST SMD |
| Category |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 18 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 30 mohm |
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Beige | 深度 | 6.2 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 7.2 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Beige | 安装类型 | Surface Mount |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Detent Lock | 安装样式 | Surface Mount |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyamide | 总长度 | 25.5 mm |
| 端接样式 | SMD | 触点数 | 18 |
| 位数 | 18 | ||
产品信息
| 类型 | Shrouded | 连接器性别 | HDR |
| 系列 | DF11 | 已删除 | Compliant |
| 产品特性 | Board Guide | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -30C to 85C | ||
