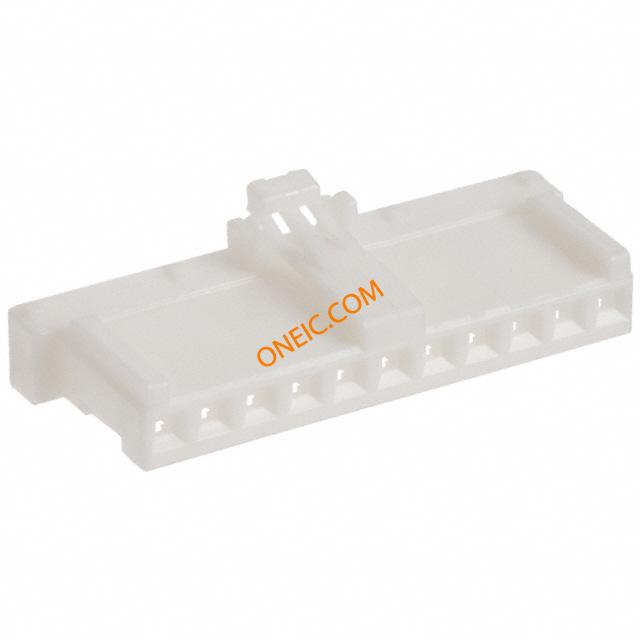

DF1E-11S-2.5C
| Manufacturer | |
| Description | Headers & Wire Housings 2.5MM 11P SOCKET HOUSING CONN RECEPT HOUSING 11POS 2.5MM DF1E Series 2.5mm 11 Way 1 Row Straight PCB Socket Panel Mount Board to Wire |
| Category |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Not Applicable | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 3A |
机械参数
| 颜色 | White | 间距 | 0.098" (2.50mm) |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 壳体材料 | Polyamide |
| 触点数 | 11 | 接触件端接 | Crimp |
| 位数 | 11 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | DF1E |
| 产品子类型 | Receptacles / Sockets - Housings | ||
Documents & Media
相关型号
DF1EC-11P-2.5DSA(05)
Hirose Connector
Headers & Wire Housings 2.5MM VERT HDR 11P PCB TIN W/O BOSS CONN HEADER 11POS 2.5MM STR TIN Conn Shrouded Header HDR 11 POS 2.5mm Solder ST Thru-Hole Bag
DF1EG-11P-2.5DSA(05)
Hirose Connector
Headers & Wire Housings 2.5MM VERT HDR POT 11P PCB TIN W/O BOSS CONN HEADER 11POS 2.5MM STR TIN

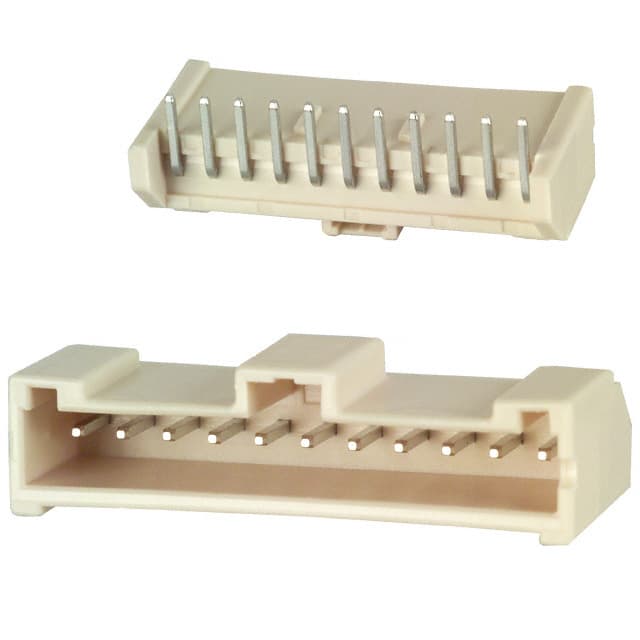

DF1E-11P-2.5DS(05)
