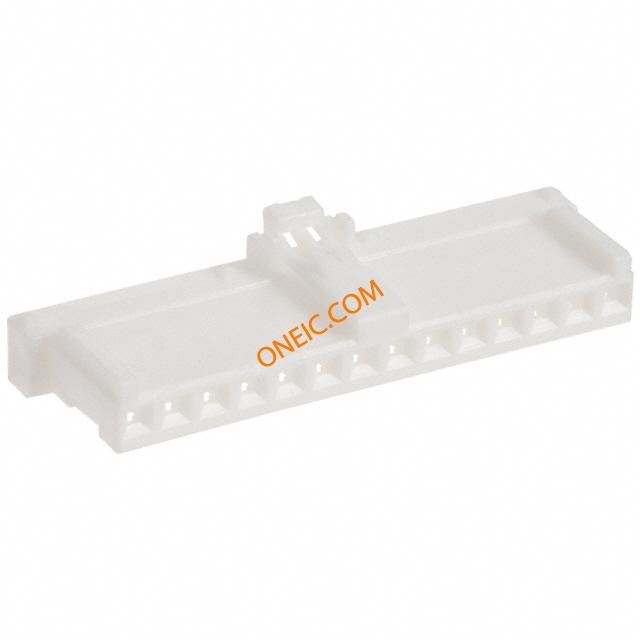

DF1E-14S-2.5C
| Manufacturer | |
| Description | Headers & Wire Housings 2.5MM 14P SOCKET HOUSING CONN RECEPT HOUSING 14POS 2.5MM DF1E Series 2.5mm 14 Way 1 Row Straight PCB Socket Panel Mount Board to Wire Conn Housing SKT 14 POS 2.5mm Crimp ST Cable Mount Bag |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Not Applicable | ||
电气参数
| 额定电压 | 250 V ac | 开关功能 | Latched |
| 最大额定电流 | 3A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | White | 深度 | 11.8 mm |
| 间距 | 0.098" (2.50mm) | 高度 | 7.55 mm |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 壳体材料 | Polyamide (PA) | 总长度 | 38 mm |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 14 | 接触件端接 | Crimp |
| 位数 | 14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | SKT | 系列 | DF1E |
| 已删除 | Compliant | ||
环境参数
| 工作温度 | -35C to 85C | ||
Documents & Media
PDF Document
PDF Document
相关型号
DF1EC-14P-2.5DSA(05)
Hirose Connector
Headers & Wire Housings 2.5MM VERT HDR 14P PCB TIN W/O BOSS CONN HEADER 14POS 2.5MM STR TIN
¥4.0120
详情
DF1E-2022SCF
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SCF
¥0.2434
详情

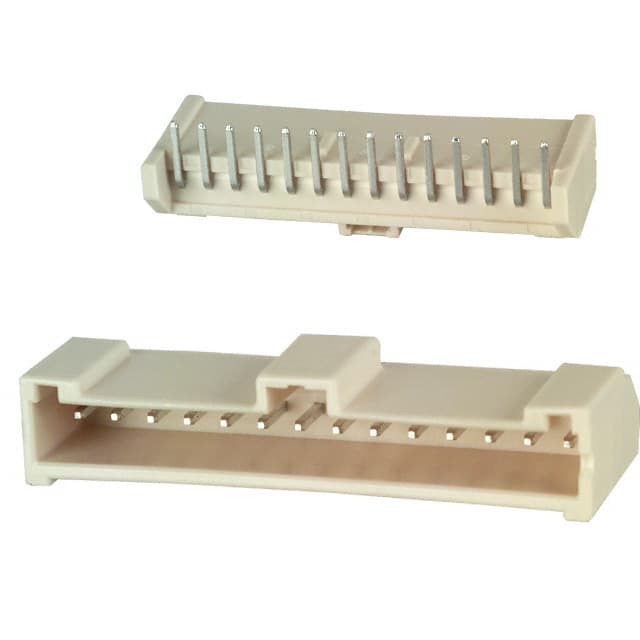

DF1E-14P-2.5DS
