点击放大查看

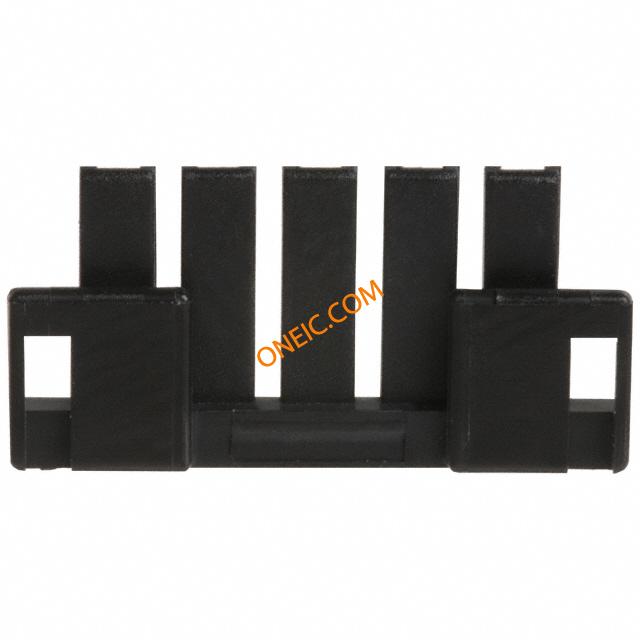

DF1E-5RS/P-2.5
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 2.5MM 5P HOUSING CONN RETAINER 5POS 2.5MM Headers & Wire Housings 2.5MM 5P HOUSING Connector Accessories Retainer Polyamide Black Bag |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 深度 | 2.4 mm | 间距 | 2.5 mm |
| 高度 | 7.4 mm | 包装方式 | Bulk |
| 导线线规 | 24-30 | 连接器类型 | Retainer Clip |
| 安装样式 | Wire | 排数 | 1 |
| 壳体材料 | Polyamide (PA) | 总长度 | 15.5 mm |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 位数 | 5 |
产品信息
| 类型 | Retainer | 系列 | DF1E |
| 已删除 | Compliant | 产品子类型 | Accessories |
| 附件类型 | Retainer Clip | 适用产品/相关产品 | DF1E Series |
环境参数
| 工作温度 | - 35 C to + 85 C | ||
