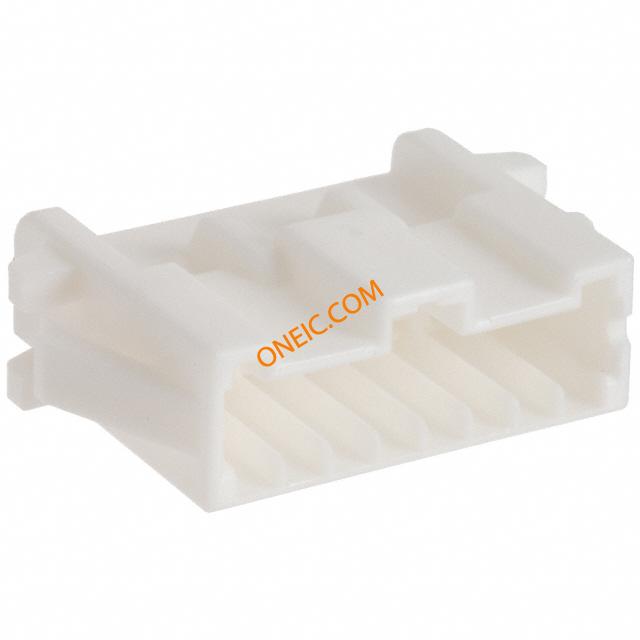

DF1E-8EP-2.5C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2.5MM INLINE PLUG 8P HOUSING CONN PLUG HOUSING 8POS 2.5MM DF1E Series 2.5mm Pitch 8 Way 1 Row Straight PCB Header, Crimp Termination, 3A
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Not Applicable

电气参数

额定电压

250 V ac

最大额定电流

机械参数

颜色	White	间距	0.098" (2.50mm)
包装方式	Bulk	触头类型	Male Pin
安装类型	Panel Mount, Snap-In	连接器类型	Plug
紧固类型	Latch Holder	排数	1
壳体材料	Polyamide	触点数	8
接触件端接	Crimp	位数	8

产品信息

备注	Contacts Not Provided	系列	DF1E
产品子类型	Plugs - Housings

Documents & Media

PDF Document

DF1E Series

PDF Document

e54110002.pdf
