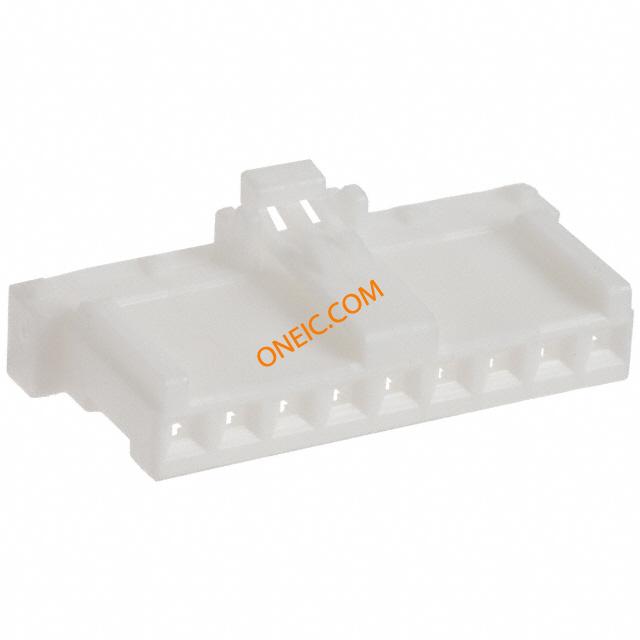

DF1E-9S-2.5C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2.5MM 9P SOCKET HOUSING CONN RECEPT HOUSING 9POS 2.5MM DF1E Series 2.5mm 9 Way 1 Row Straight PCB Socket Panel Mount Board to Wire Conn Housing SKT 9 POS 2.5mm Crimp ST Cable Mount Bag
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Not Applicable

电气参数

额定电压	250 V ac	最大额定电流	3A
最小供电电压	250VAC

机械参数

颜色	White	深度	11.8 mm
间距	0.098" (2.50mm)	高度	7.55 mm
包装方式	Bulk	触头类型	Female Socket
外壳颜色	White	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	紧固类型	Latch Lock
安装样式	Free Hanging	排数	1
壳体材料	Polyamide	总长度	25.5 mm
触点数	9	接触件端接	Crimp
位数	9

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	SKT	系列	DF1E
已删除	Compliant	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

-35C to 85C

Documents & Media

PDF Document

DF1E Series

PDF Document

e54110002.pdf

相关型号

DF1E-2022SCF

Hirose Connector

ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SCF

¥0.2434

详情

DF1EC-9P-2.5DSA

Hirose Connector

Headers & Wire Housings Obsolete CONN HEADER 9POS 2.5MM STR TIN

详情

DF1E-2022SC

Hirose Connector

ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SC

¥0.3191

详情

DF1EA-9EP-2.5C

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM INLINE PLUG 9P HSNG NO PNL LOCK CONN PLUG HOUSING 9POS 2.5MM Headers & Wire Housings 2.5MM INLINE PLUG 9P HSNG NO PNL LOCK

¥2.0808

详情

DF1E-9RS/P-2.5

Hirose Connector

Headers & Wire Housings 2.5MM 9P RETAINER CONN RETAINER 9POS 2.5MM

¥1.0064

详情

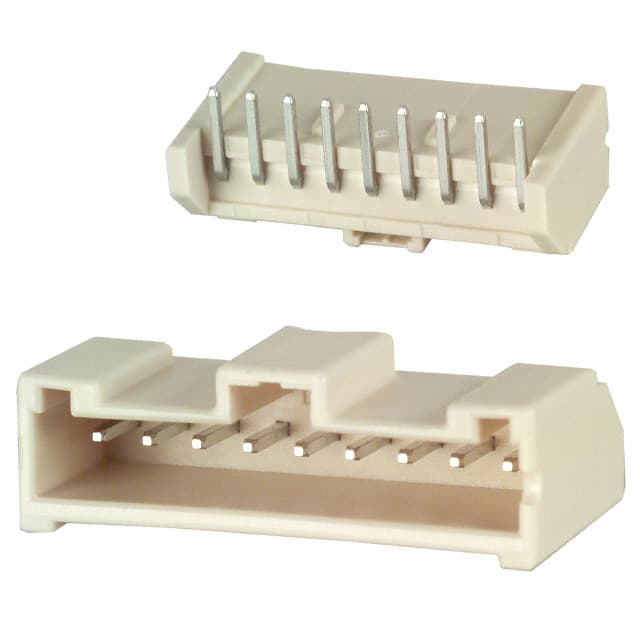

DF1EC-9P-2.5DSA(05)
