点击放大查看

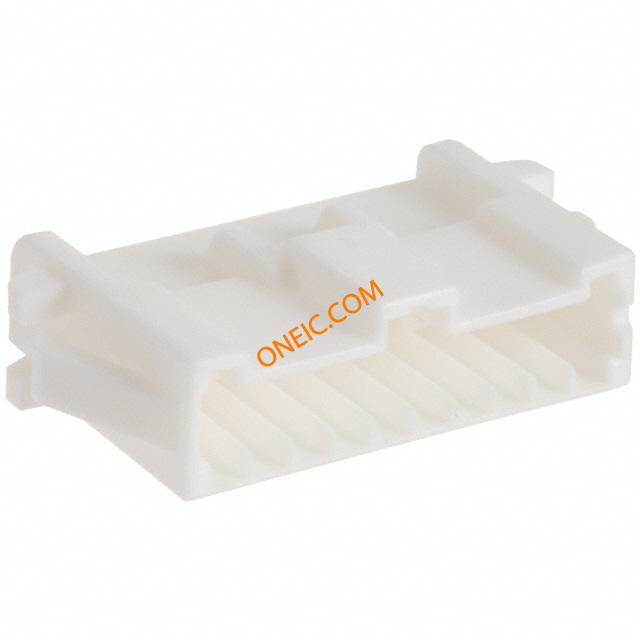

DF1EA-10EP-2.5C
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 2.5MM INLINE PLUG 10P HSNG NO PNL LOCK CONN PLUG HOUSING 10POS 2.5MM Headers & Wire Housings 2.5MM INLINE PLUG 10P HSNG NO PNL LOCK Conn Housing PL 10 POS 2.5mm Crimp ST Cable Mount Bag |
| Category |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 VAC | 最大额定电流 | 3 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | White | 深度 | 18.8 mm |
| 间距 | 0.098" (2.50mm) | 高度 | 9 mm |
| 包装方式 | Bulk | 触头类型 | Male Pin |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 紧固类型 | Latch Holder |
| 排数 | 1 | 壳体材料 | Polyamide |
| 总长度 | 28 mm | 触点数 | 1 |
| 接触件端接 | Crimp | 位数 | 10 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | DF1E |
| 已删除 | Compliant | 产品子类型 | Plugs - Housings |
环境参数
| 工作温度 | -35C to 85C | ||
