点击放大查看

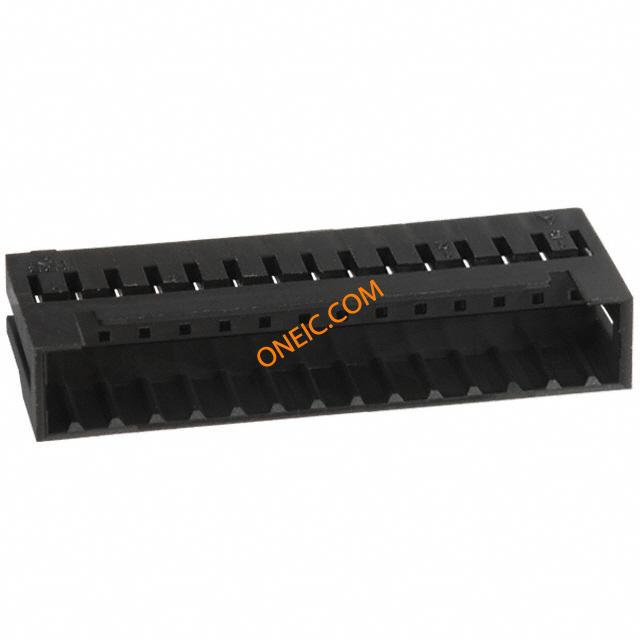

DF3-14EP-2C
| Manufacturer | |
| Description | Headers & Wire Housings 2MM PLUG HOUSING 14 POS CRIMP CONN PLUG HOUSING 14POS 2MM In-line Plug housing 2mm pitch 14 way Hirose DF3 系列 2mm 节距 14 路 直 公 直插式 PCB 连接器外壳 |
| Category |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
机械参数
| 颜色 | Black | 深度 | 11.1mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 5mm |
| 长度 | 30mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 排数 | 1 | 壳体材料 | PA |
| 触点数 | 14 | 接触件端接 | Crimp |
| 位数 | 14 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | DF3 | 适用产品/相关产品 | DF3 Series Connector |
Documents & Media
相关型号
DF3-EP2428PC
Hirose Connector
Headers & Wire Housings MALE CONTACT TIN 24-28AWG LOOSE CONN PIN 24-28AWG CRIMP TIN Contact,crimp,pin,inline plug,AWG 24-28 DF3-EP2428PC Hirose DF3 系列 公 压接接线端子, 压接, 镀锡触点
DF3-EP2428PCF
Hirose Connector
Headers & Wire Housings MALE CONTACT TIN 24-28AWG REEL CONN PIN 24-28AWG CRIMP TIN
DF3-EP2428PCA
Hirose Connector
ヘッダ & ワイヤハウジング MALE CONTACT GLD 24-28AWG LOOSE CONN PIN 24-28AWG CRIMP GOLD Crimp Contact gold plated 24-28 AWG way Headers & Wire Housings MALE CONTACT GLD 24-28AWG LOOSE DF3-EP2428PCA Hirose DF3 系列 公 压接接线端子, 压接, 镀金触点
DF3-EP2428PCFA
Hirose Connector
ヘッダ & ワイヤハウジング MALE CONTACT GLD 24-28AWG REEL CONN PIN 24-28AWG CRIMP GOLD Headers & Wire Housings MALE CONTACT GLD 24-28AWG REEL

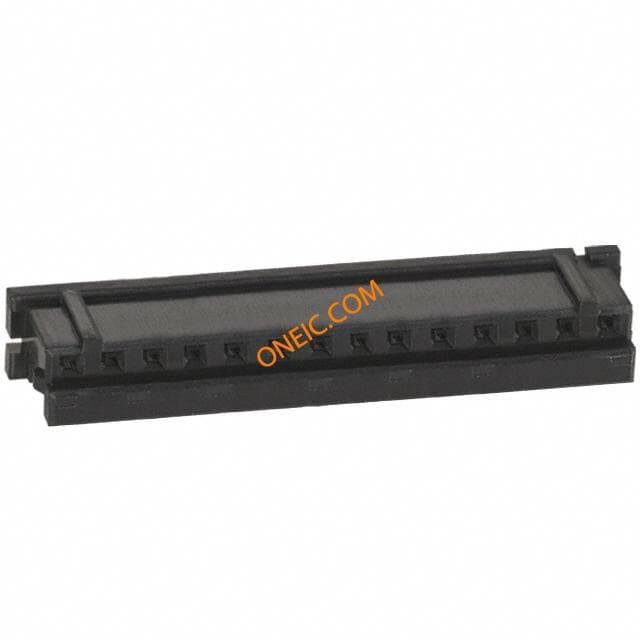

DF3-14S-2C
