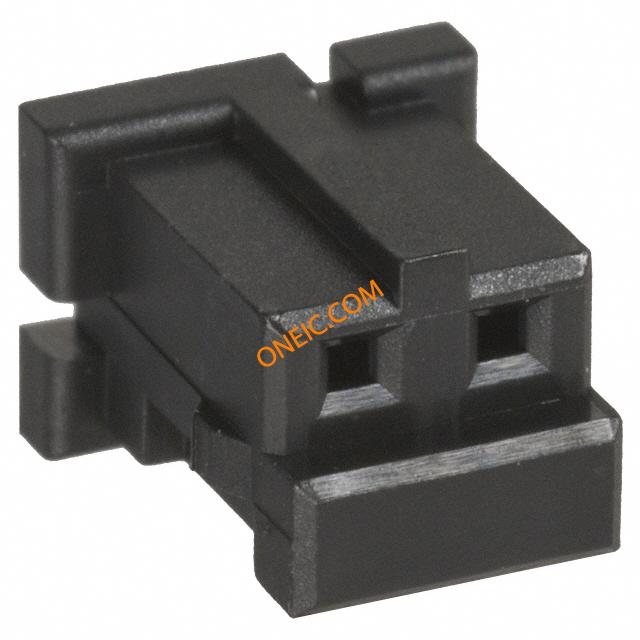

DF3-2S-2C

Manufacturer	Hirose Electric Co., Ltd.
Description	ヘッダ & ワイヤハウジング 2MM RECEPT HOUSING 2 POS CRIMP CONN RECEPT HOUSING 2POS 2MM Connector,Socket,PCB,Board to Wire,2mm p Crimp socket housing 2-way 2mm pitch Headers & Wire Housings 2MM RECEPT HOUSING 2 POS CRIMP Conn Housing SKT 2 POS 2mm Crimp ST Panel Mount Bag Hirose DF3 系列 2mm 节距 2 路直母电缆安装 PCB 壳体
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Not Applicable

电气参数

额定电压	250 V	最大额定电流	3 A
最小供电电压	100VAC

机械参数

颜色	Black	深度	6.8mm
间距	0.079" (2.00mm)	宽度	4.6mm
高度	4.6 mm	长度	6mm
包装方式	Bulk	导线线规	22-28 AWG
方向	直	触头类型	Female Socket
外壳颜色	Black	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	安装样式	Wire
排数	1	壳体材料	PA
总长度	6 mm	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	2
接触件端接	Crimp	位数	2

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Female	系列	DF3
已删除	Compliant	适用产品/相关产品	Discrete Wire Connector

环境参数

工作温度

-30C to 85C

Documents & Media

PDF Document

DF3 Series Datasheet

PDF Document

e54300012.pdf

相关型号

DF3Z-2P-2H(50)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM R/A PCB HEADER 2 POS SMT GLD CONN HEADER 2POS 2MM R/A GOLD Headers & Wire Housings 2MM R/A PCB HEADER 2 POS SMT GLD

¥6.2404

详情

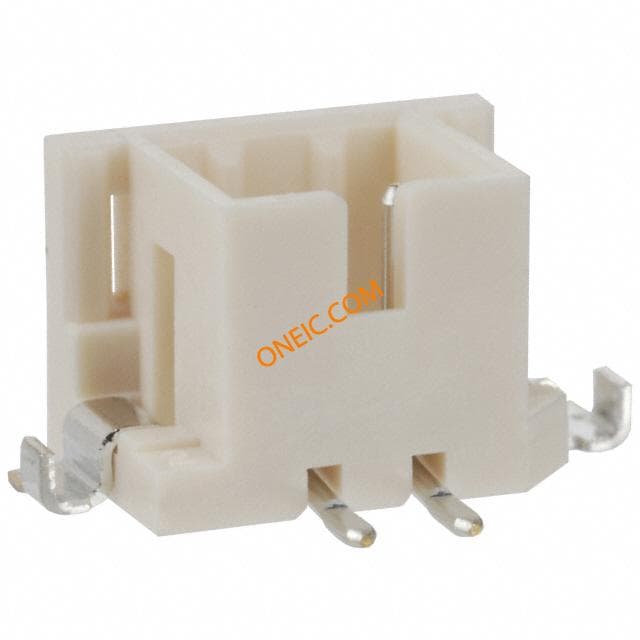

DF3DZ-2P-2V(21)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM V PCB HEADER 2POS SMT TIN CONN HEADER 2POS 2MM VERT TIN Header 2mm pitch vertical SMT tin 2 way Headers & Wire Housings 2MM V PCB HEADER 2POS SMT TIN Hirose DF3 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A

¥1.7680

详情

DF3-2EP-2C

Hirose Connector

ヘッダ & ワイヤハウジング 2MM PLUG HOUSING 2 POS CRIMP CONN PLUG HOUSING 2POS 2MM Hirose DF3 Series 2mm Pitch 2 Way 1 Row Straight Male Cable Mount PCB Connector Housing, Nylon Housing Material Headers & Wire Housings 2MM PLUG HOUSING 2 POS CRIMP Conn Housing PL 2 POS 2mm Crimp ST Panel Mount Bag Hirose DF3 系列 1 行 2mm 节距 2 路直公直插式 PCB 连接器外壳

¥0.3400

详情

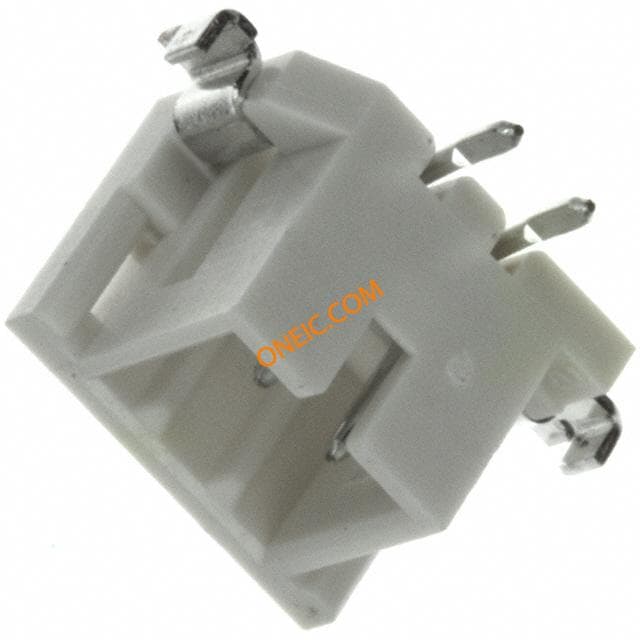

DF3Z-2P-2V(20)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM V PCB HEADER 2 POS SMT TIN CONN HEADER 2POS 2MM VERT TIN Hirose DF3 Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A VERTICALHEADER2-WAY Hirose DF3 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 表面安装

¥2.1692

详情

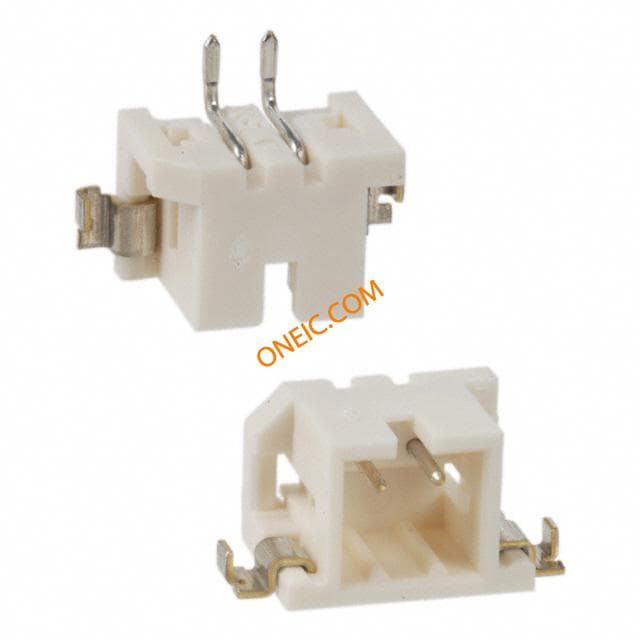

DF3DZ-2P-2H(20)

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 2 POS SMT TIN CONN HEADER 2POS 2MM R/A TIN Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD

¥2.1692

详情

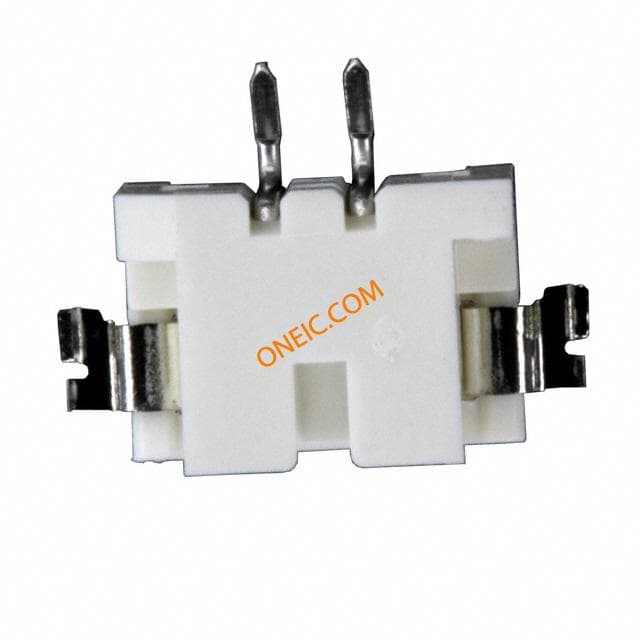

DF3Z-2P-2H(20)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM R/A PCB HEADER 2 POS SMT TIN CONN HEADER 2POS 2MM RT ANG TIN Hirose DF3 Series 2mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2MM R/A PCB HEADER 2 POS SMT TIN HORIZONTALHEADER2-WAY Hirose DF3 系列 2mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 3A , 表面安装

¥2.1692

详情

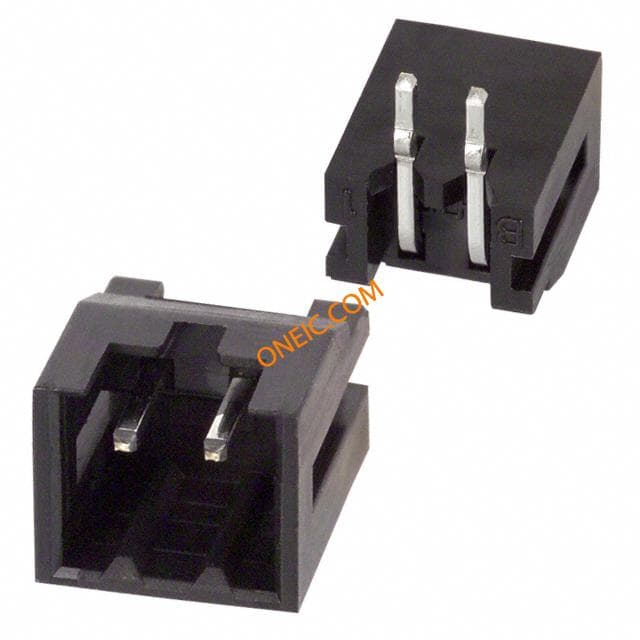

DF3A-2P-2DS

Hirose Connector

ヘッダ & ワイヤハウジング 2MM R/A PCB HEADER 2POS THRU-HOLE TIN CONN HEADER 2POS 2MM R/A TIN Hirose DF3A Series 2mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2MM R/A PCB HEADER 2POS THRU-HOLE TIN Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Bag R/AHEADER2-WAY Hirose DF3 系列 2路 2mm节距 (1排) 直角 PCB 针座 , 焊接端接, 3A, 通孔

¥0.5358

详情

DF3AA-2EP-2C

Hirose Connector

Headers & Wire Housings 2MM PLUG HOUSING 2P CRIMP W/PNL LOCK CONN PLUG HOUSING 2POS 2MM Conn Housing PL 2 POS 2mm Crimp ST Panel Mount Bag

¥0.6120

详情

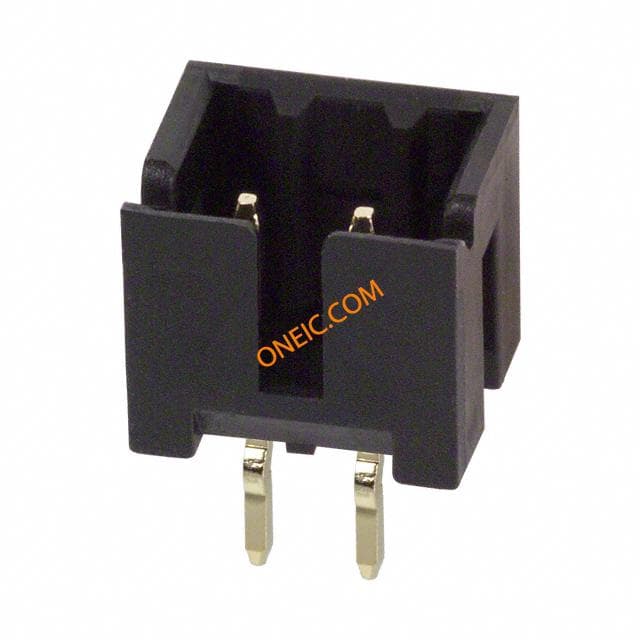

DF3-2P-2DSA(01)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 2POS THRU-HOLE GLD CONN HEADER 2POS 2MM VERT GOLD Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bag

¥0.9180

详情

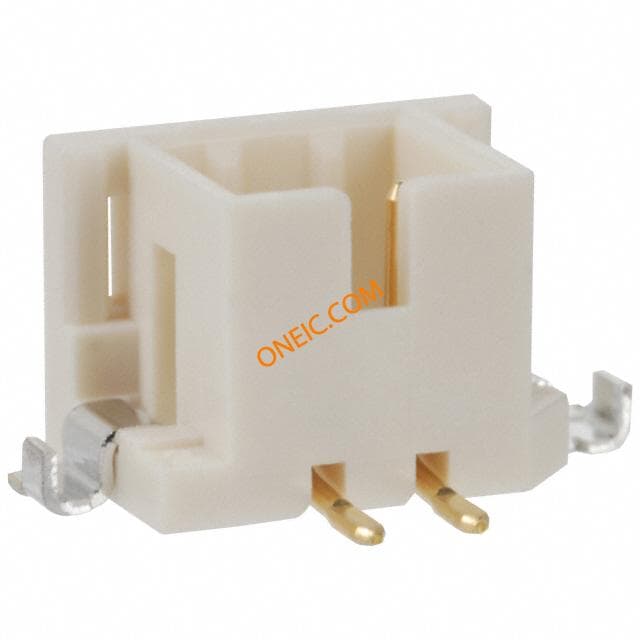

DF3DZ-2P-2V(50)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 2 POS SMT GLD CONN HEADER 2POS 2MM VERT GOLD

¥2.1692

详情

DF3DZ-2P-2V(20)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM V PCB HEADER 2 POS SMT TIN CONN HEADER 2POS 2MM VERT TIN Headers & Wire Housings 2MM V PCB HEADER 2 POS SMT TIN

¥2.1692

详情

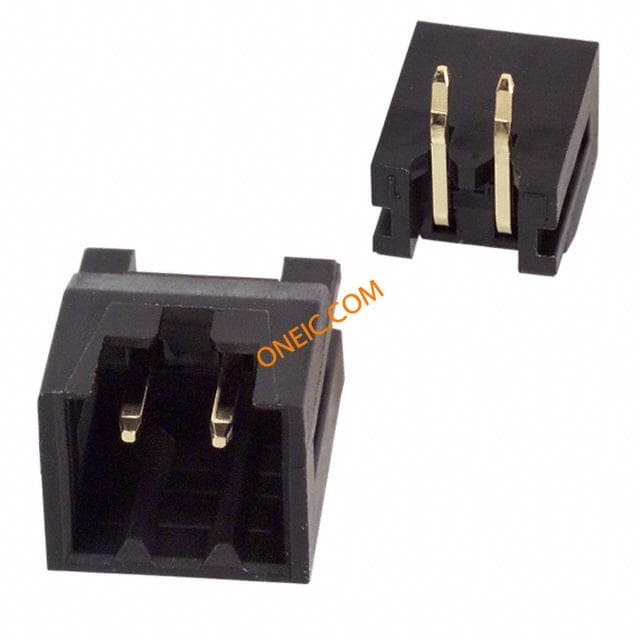

DF3-2P-2DS(01)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM R/A PCB HEADER 2POS THRU-HOLE GLD CONN HEADER 2POS 2MM R/A GOLD Headers & Wire Housings 2MM R/A PCB HEADER 2POS THRU-HOLE GLD Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Bag

¥0.7208

详情

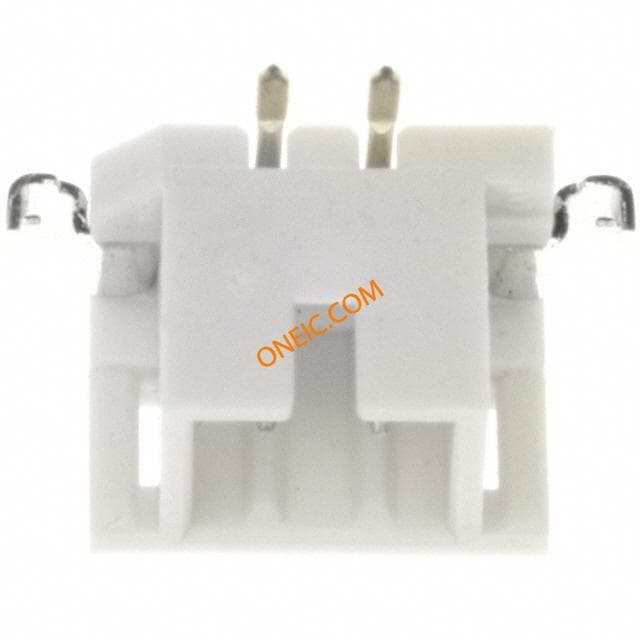

DF3Z-2P-2V(50)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 2 POS SMT GLD CONN HEADER 2POS 2MM VERT GOLD

¥2.1692

详情

暂无图片

DF3Z-2P-2H(21)

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 2 POS SMT TIN CONN HEADER 2POS 2MM RT ANG TIN

¥2.3562

详情

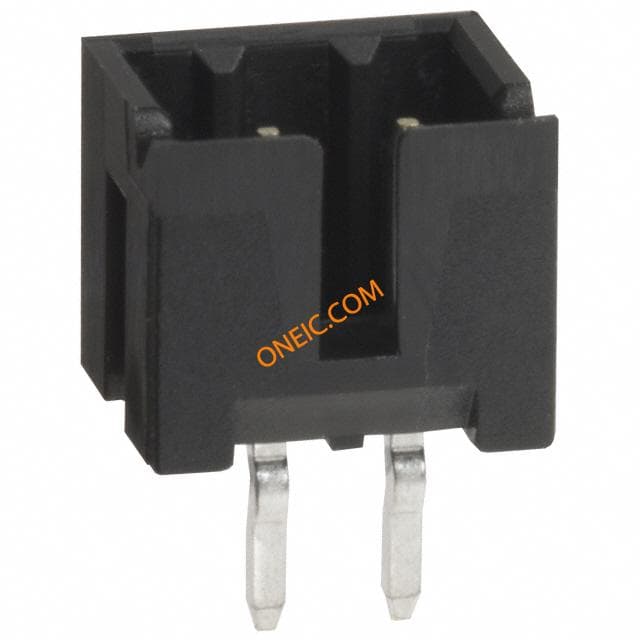

DF3A-2P-2DSA
