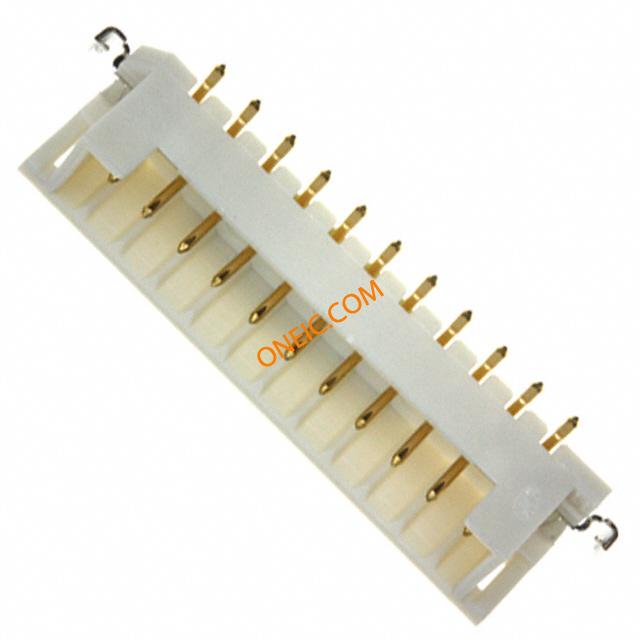

DF3Z-11P-2V(50)
| Manufacturer | |
| Description | Headers & Wire Housings 2MM V PCB HEADER 11 POS SMT GLD CONN HEADER 11POS 2MM VERT GOLD |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 15 | ||
机械参数
| 颜色 | Beige | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 1 | 位数 | 11 |
产品信息
| 产品特性 | Board Guide, Solder Retention | 加载位置数 | All |
Documents & Media
PDF Document
