DF57-2S-1.2C
| Manufacturer | |
| Description | Lighting Connectors 2P CRIMP SCKT 1.2MM W2B LOW-PRF SWING LK CONN RCPT 1.2MM 2POS Hirose DF57 Series 12mm 2 Way 1 Row Straight PCB Socket Cable Mount Wire to Board CRIMPSOCKET2-WAY |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Connectors | 标准包装数量 | 1,000 |
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 50 V ac/dc | ||
机械参数
| 颜色 | White | 间距 | 0.047" (1.20mm) |
| 包装方式 | Bulk | 导线线规 | 30-28 |
| 端接方式 | Crimp | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 紧固类型 | Swing Lock |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Crimp |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Wire to Board |
| 系列 | DF57 | 应用细节 | Wire to Board |
Documents & Media
PDF Document
PDF Document
相关型号
DF57-2830SCF
Hirose Connector
ライティングコネクタ FML CRIMP CNTCT/REEL AWG#28 to AWG#30 CONN SOCKET CRIMP 28-30AWG TIN Crimp Contact AWG 28 - 30 Lighting Connectors FML CRIMP CNTCT/REEL AWG#28 to AWG#30
¥0.1700
详情

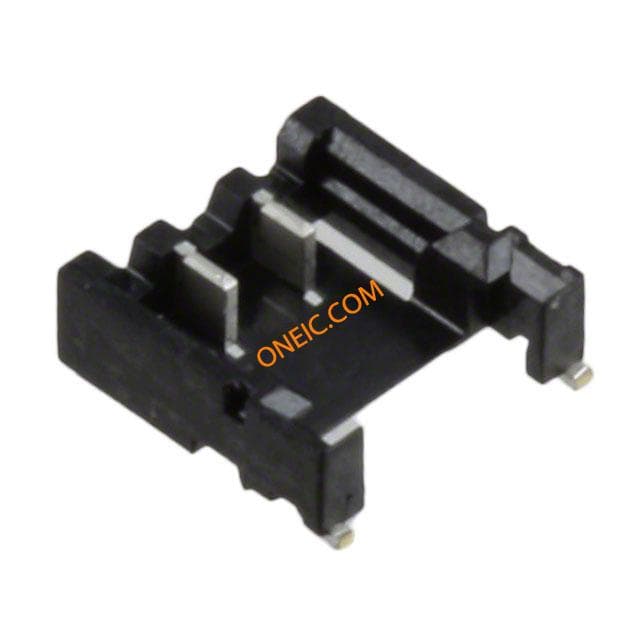

DF57-2P-1.2V(21)
