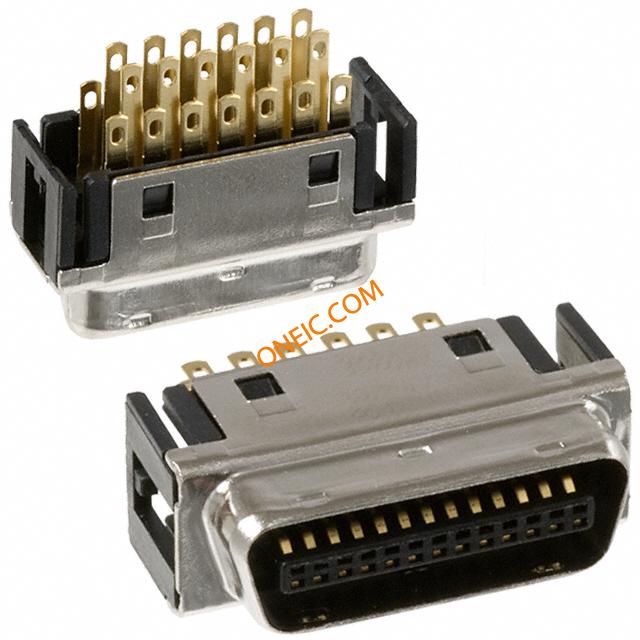

DX40M-26P
| Manufacturer | |
| Description | I/O Connectors M 26 POS 1.27mm Sodr ST Panel Mount 26 CONN PLUG 26 POS SOLDER |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | I/O Connectors | 标准包装数量 | 90 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125 VAC | 最大额定电流 | 500 mA |
机械参数
| 间距 | 1.27 mm | 端接方式 | Solder Eyelet(s) |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 连接器样式 | Center Strip Contacts |
| 触头材料 | Copper Alloy | 壳体材料 | Steel |
| 端接样式 | Solder | 触点数 | 26 |
| 位数 | 26 | ||
产品信息
| 类型 | Miniature High Density (HD) | 连接器性别 | Male |
| 系列 | DXM | ||
环境参数
| 工作温度 | + 85 C | ||
