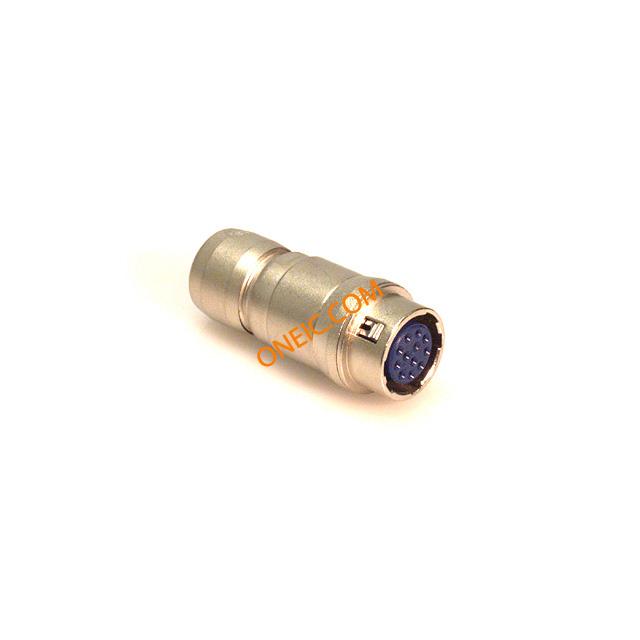

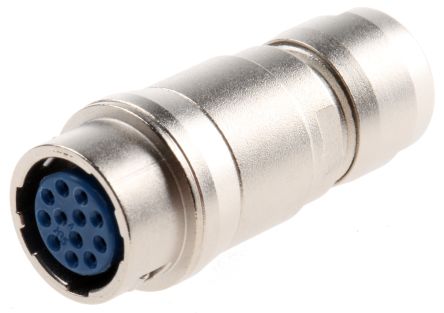

HR10-10J-12S(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P JACK SHELL SZ 10 FEMALE AU TERM SOLDR JACK W/SOCKET INSERT (12 CON) Hirose HR10 Series 12 Way Straight Female Cable Mount Miniature Connector, 2A Coupling bushing 12-pin Poles=12, HR10-10J-12S(73), Hirose Hirose HR10 系列 12路 电缆安装 直向 连接器 插座 , 母触点, 推挽式接合 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100VAC | Number of Poles | 12 |
| Connector Impedance | 微型 | Current Rating (Max) | 2A |
| Current Rating - Appliance Inlet | 2 | ||
Mechanical
| Outline | 10mm | Packaging | Bulk |
| Shell Size | 10 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 母座 | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Cable End Type | 7 mm |
| Connector Type | Jack, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Locking Feature | Push-Pull | Contact Material | Beryllium, Phosphor Bronze |
| Housing Material | Metal | Termination Rows | 焊接 |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 12 | Number of Positions | 12 |
| Shell Size - Insert | 10 | 1st Connector Gender | Female |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Design | Coupling socket | Gender | Female |
| Series | HR10 | Product Type | Connectors |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
