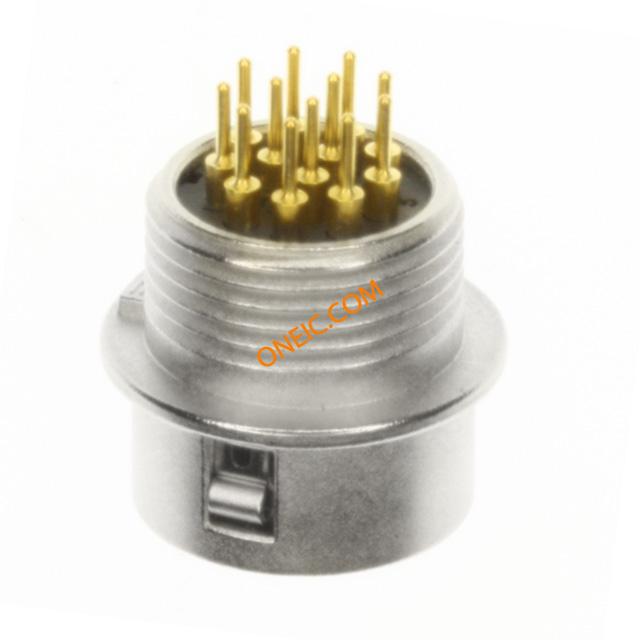

HR10-10R-12SA(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P RECP SHELL SZ 10 F/M AU TERM PCB DIP CONN RECEPT 12POS FEMALE DIP PCB Hirose HR10 系列 12路 面板安装、通孔 直向 连接器 插座 , 母触点, 推挽式接合 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Voltage Rating | 100VAC | Connector Impedance | 微型 |
| Current Rating (Max) | 2A | ||
Mechanical
| Outline | 10 | Packaging | Bulk |
| Shell Size | 10 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 母座 | Mounting Type | Panel Mount, Bulkhead; Through Hole |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Through Hole | Shell Material | Metal |
| Contact Material | 铍，磷青铜 | Housing Material | 黄铜，锌合金 |
| Termination Rows | 印刷电路板引脚 | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 12 |
| Number of Positions | 12 | Shell Size - Insert | 10 |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Series | HR10 | Product Type | Connectors |
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
