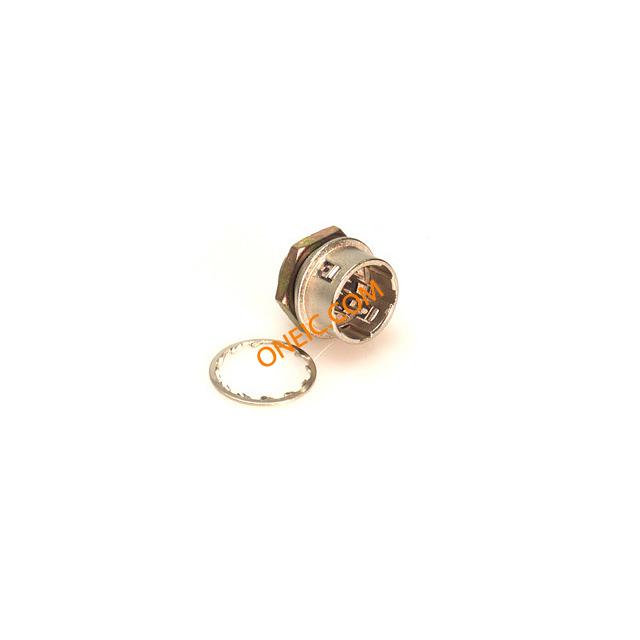

HR10A-10R-10P(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P RECP SHELL SZ 10 MALE SIL TERM SOLDR HR10A REC 10 POS. W/PIN 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts, Push-Pull 10WMALERECEPTSOLDER Device connector 10-pin Poles=10, HR10A-10R-10P(73), Hirose |
| Category |
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 20 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 100VAC | 极数 | 10 |
| 最大额定电流 | 2A | 额定电流 - 设备输入口 | 2 |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 10 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder Cup | 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Push-Pull |
| 安装样式 | Panel | 外壳材料（壳体） | Metal |
| 连接器用途 | Push-Pull | 锁定特性 | Push-Pull |
| 触头材料 | Brass, Bronze | 壳体材料 | Metal |
| 端接样式 | Solder | 第一触头极性 | Male |
| 触点数 | 10 | 位数 | 10 |
| 外壳尺寸-插件 | 10 | 第一连接器极性 | Male |
| 外壳材料及表面处理 | Brass and Zinc, Nickel Plated | ||
产品信息
| 类型 | Push-Pull | 设计类型 | Panel-mount male receptacle |
| 连接器性别 | Female | 系列 | HR10 |
| 产品子类型 | Connectors | 输出配置 | Panel Mount, Bulkhead - Rear Side Nut |
环境参数
| 工作温度 | -25°C ~ 85°C | ||
