点击放大查看

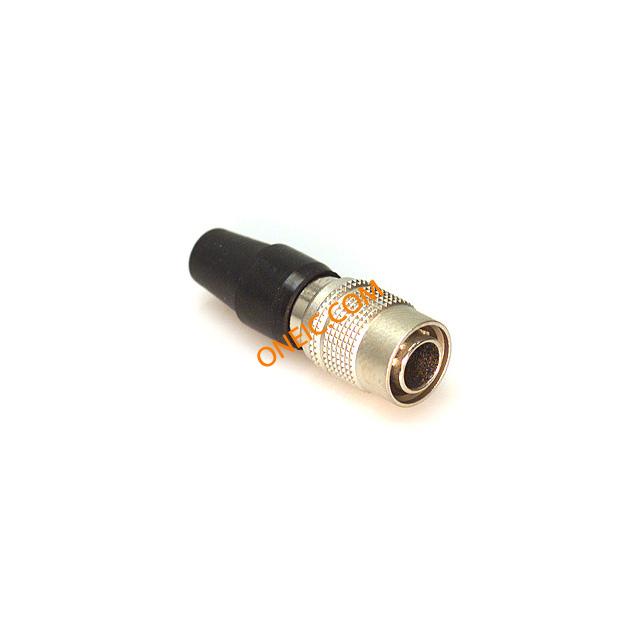

HR10A-7P-4PC
| Manufacturer | |
| Description | Circular Push Pull Connectors Obsolete CONN HR10A PLUG 4POS MALE |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 额定电压 | 100 VAC | 最大额定电流 | 2 A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 7 |
| 方向 | Keyed | 外壳样式 | Plug |
| 触点尺寸 | 1.0mm | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 接触镀层 | Gold, Silver | 紧固类型 | Push-Pull |
| 安装样式 | Cable | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 7 |
| 外壳材料及表面处理 | Brass and Zinc, Nickel Plated | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Push-Pull |
| 系列 | HR10A | 产品子类型 | Connectors |
环境参数
| 机械寿命 | Obsolete | ||
