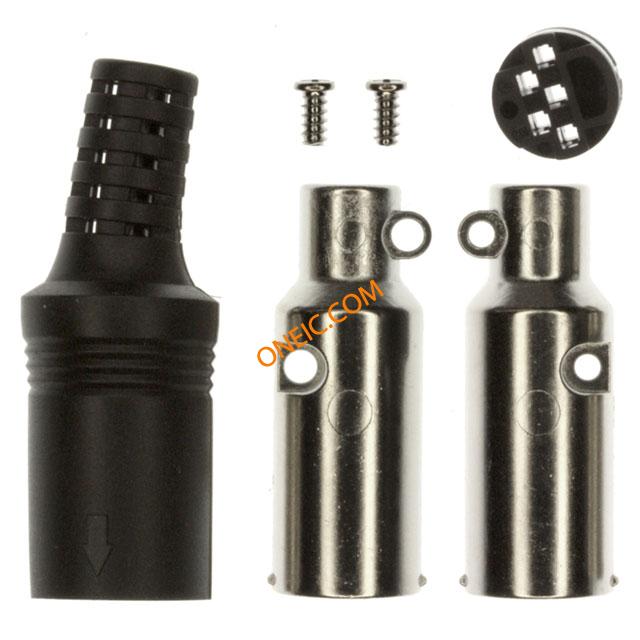

HR212-10P-5PC(71)
| Manufacturer | |
| Description | Standard Circular Connector PLUG 5POS VERT CRIMP TIN CONN PLUG 5POS VERT CRIMP TIN |
| Category |
商业参数
| 标准包装数量 | 50 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 10 |
| 导线线规 | 28 | 方向 | Keyed |
| 外壳样式 | Plug | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Push-Pull | 触头材料 | Copper Alloy |
| 端接样式 | Crimp | 第一触头极性 | Pin |
| 触点数 | 5 | 位数 | 5 |
| 外壳尺寸-插件 | Mini DIN | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | HR12 |
| 产品特性 | Shielded, Strain Relief | 产品子类型 | Connectors |
Documents & Media
相关型号
HR12-PC-211
Hirose Connector
Standard Circular Connector CONN CONTACT PIN CRIMP 26-30AWG
.JPG&w=3840&q=75)

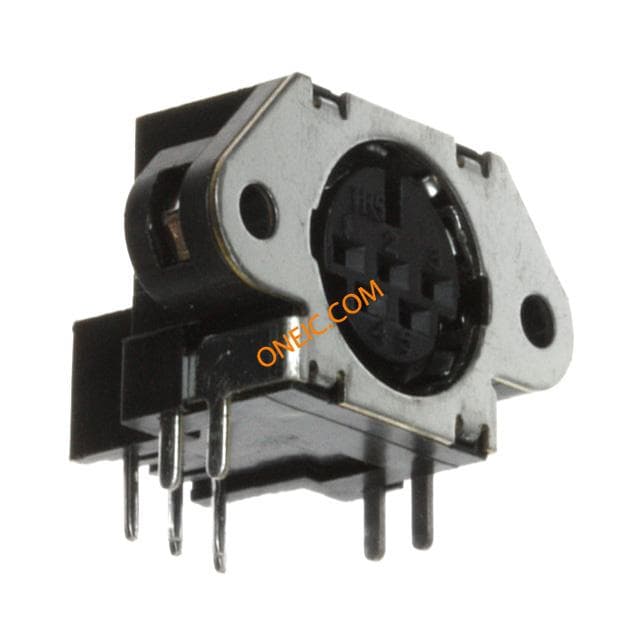

HR212-10R-5SDL(02)
