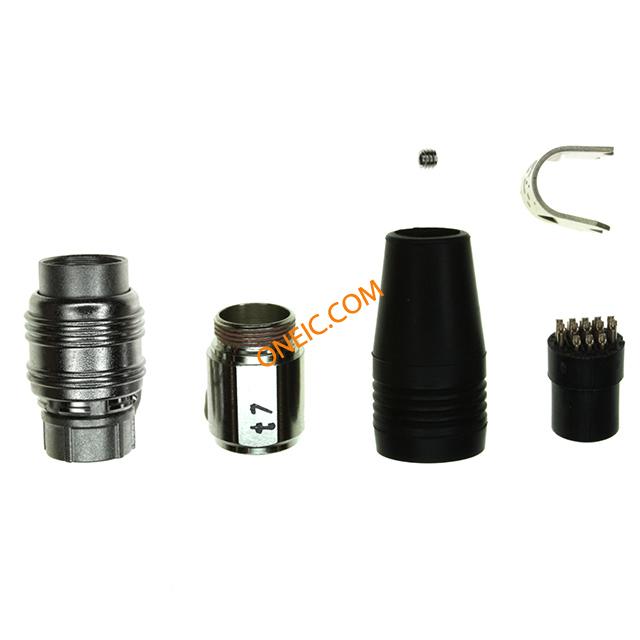

HR25A-9P-16S
| Manufacturer | |
| Description | Circular Push Pull Connectors 16P PLUG SHELL SZ 9 FEMALE CNTS SOLDER CONN PLUG 16POS FEMALE CIRCULAR |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 20 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 30VAC/DC | 最大额定电流 | 1A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 9 |
| 导线线规 | 30 | 外壳样式 | Plug |
| 端接方式 | Solder | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Push-Pull |
| 安装样式 | Cable | 外壳材料（壳体） | Metal |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 16 | 位数 | 16 |
| 外壳尺寸-插件 | 9 | 外壳材料及表面处理 | Zinc, Nickel Plated |
产品信息
| 类型 | Miniature Push-Pull | 系列 | HR25A |
| 产品子类型 | Connectors | ||
环境参数
| 工作温度 | -25°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
