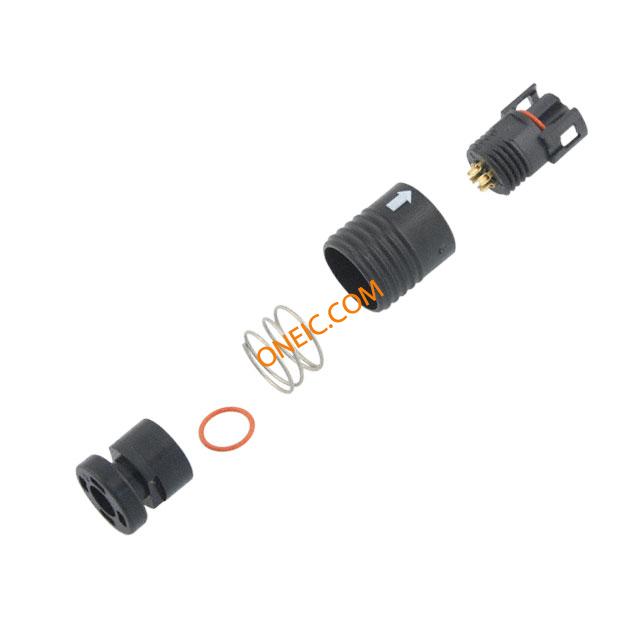

HR30-6PB-6S

Manufacturer	Hirose Electric Co., Ltd.
Description	Circular Push Pull Connectors 6P PLUG SHELL SZ 6 FEM W/OVERMOLD SPCR CONN PLUG 6POS FEMALE SOLDER
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category

Circular Push Pull Connectors

Standard Package

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating

100VAC, 140VDC

Current Rating (Max)

Mechanical

Packaging	Tray	Shell Size	6
Orientation	Keyed	Shell Style	Plug
Termination	Solder Cup	Mounting Type	Free Hanging (In-Line)
Connector Type	Plug, Female Sockets	Contact Finish	Gold
Fastening Type	Push-Pull	Mounting Style	Cable
Shell Material	Plastic	Termination Style	Solder
1st Contact Gender	Socket (Female)	Number of Contacts	6
Number of Positions	6	Shell Size - Insert	6
Shell Material, Finish	Polyphenylene Sulfide (PPS)

Product Info

Series	HR30	Features	Strain Relief
Product Type	Connectors

Environmental

Ingress Protection

IP67 - Dust Tight, Waterproof

Operating Temperature

-25°C ~ 85°C

Documents & Media

PDF Document

HR30 Overmold Wiring Procedure

PDF Document

HR30-6PB-6S Drawing

PDF Document

HR30%20Overmold.pdf
