点击放大查看

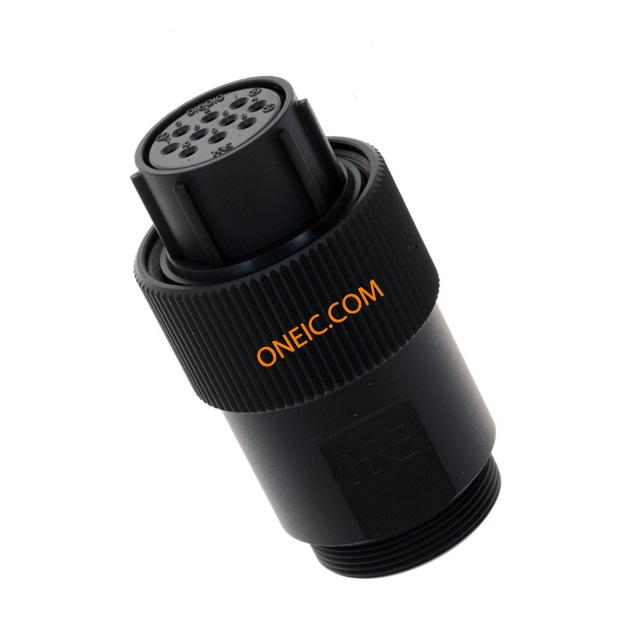

JR16WP-10S(71)

Manufacturer	Hirose Electric Co., Ltd.
Description	Standard Circular Connector PLUG IP67 10POS FEM CONN PLUG WATERPROOF 10POS FMALE Conn High Performance Waterproof F 10 POS Solder ST Cable Mount 10 Terminal 1 Port
Category	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS

RoHS Compliant

抗辐射加固

电气参数

额定电压

100VAC, 140VDC

最大额定电流

机械参数

直径	25.8 mm	包装方式	Bulk
出线方向	No	外壳尺寸	16
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	触点形式	10Signal
安装类型	Free Hanging (In-Line)	外壳镀层	Chromium
连接器类型	Plug, Female Sockets	接触镀层	Silver
紧固类型	Threaded	安装样式	Free Hanging
外壳材料（壳体）	Metal	触头材料	Copper Alloy
总长度	46.5 mm	端接样式	Solder
第一触头极性	Socket (Female)	触点数	10
位数	10	外壳尺寸-插件	16
外壳材料及表面处理	Aluminum, Brass and Zinc Alloy, Black Chrome Plated

产品信息

连接器性别	PL	系列	JR-W
已删除	Compliant	产品子类型	Connectors
射频系列/标准	JR	输出配置	Free Hanging (In-Line)

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-25°C ~ 85°C

Documents & Media

PDF Document

JR Series, JR-W Connector

PDF Document

e11420015.pdf
