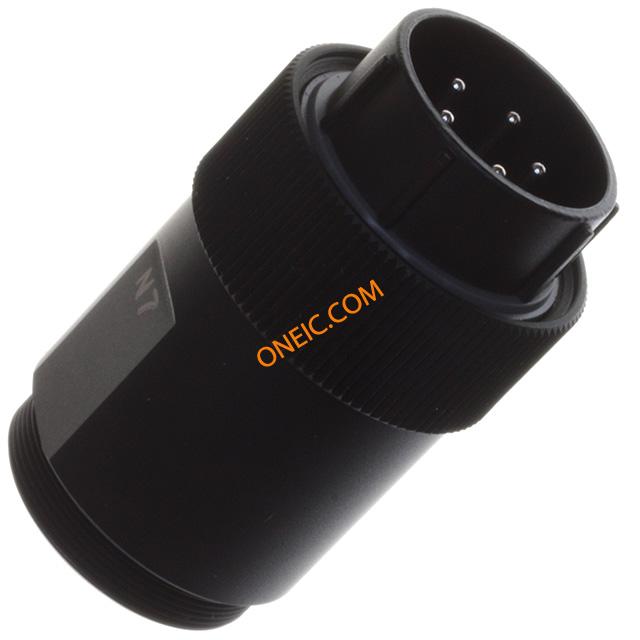

JR25WP-5P(71)

Manufacturer	Hirose Electric Co., Ltd.
Description	Standard Circular Connector PLUG IP67 5POS MALE CONN PLUG WATERPROOF 5POS MALE
Category	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

100VAC, 140VDC

最大额定电流

10A

机械参数

包装方式	Bulk	方向	Keyed
外壳样式	Plug	端接方式	Solder Cup
安装类型	Free Hanging (In-Line)	连接器类型	Plug, Male Pins
接触镀层	Silver	紧固类型	Threaded
位数	5	外壳尺寸-插件	25
外壳材料及表面处理	Aluminum, Brass and Zinc Alloy, Black Chrome Plated

产品信息

系列

产品子类型

Connectors

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-25°C ~ 85°C

Documents & Media

PDF Document

JR Series, JR-W Connector

PDF Document

e11420015.pdf

相关型号

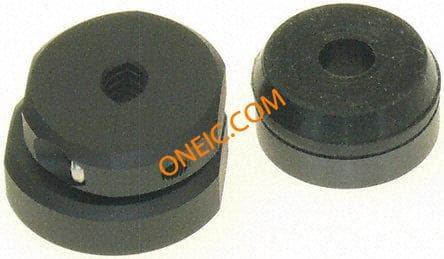

JR25WCC-12(72)

Hirose Connector

Standard Circular Connector STANDARD CABLE CLAMP WATER-PROOF CIRC CON CONN CABLE CLAMP 12MM Hirose Black Aluminium Alloy Clamp, 12mm Bundle Diameter, 31 Dia. x 18mm CableClampfor12mmcable Hirose 黑色铝合金夹子, 12mm 捆束直径

¥88.8760

详情

JR25WCC-12(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELIEF JR25 12MM CONN CABLE CLAMP 12MM

¥88.8746

详情

JR25WCC-14(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELIEF JR25 14MM CONN CABLE CLAMP 14MM

¥88.4088

详情

JR25WCC-8(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELIEF JR25 8MM CONN CABLE CLAMP 8MM

¥88.9678

详情

JR25WCC-16(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELIEF JR25 16MM CONN CABLE CLAMP 16MM

¥82.9430

详情

JR25WCCA-8(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 8P CONN STRAIN RELIEF JR25 8MM

¥36.6520

详情

JR25WCC-18(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELIEF JR25 18MM CONN CABLE CLAMP 18MM

¥104.3168

详情

JR25WCCA-10(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 10P CONN STRAIN RELIEF JR25 10MM

¥36.8560

详情

JR25WCCA-18(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 18P CONN STRAIN RELIEF JR25 18MM

¥90.4128

详情

JR25WCCA-12(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 12P CONN STRAIN RELIEF JR25 12MM

¥36.8560

详情

JR25WCCA-16(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 16P CONN STRAIN RELIEF JR25 16MM

¥40.3104

详情

JR25WCCA-14(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 14P CONN STRAIN RELIEF JR25 14MM

¥36.8560

详情

JR25WCC-10(71)

Hirose Connector

Standard Circular Connector STRAIN RELIEF JR25 10MM CONN CABLE CLAMP 10MM Connector Accessories Clamp

¥78.4720

详情

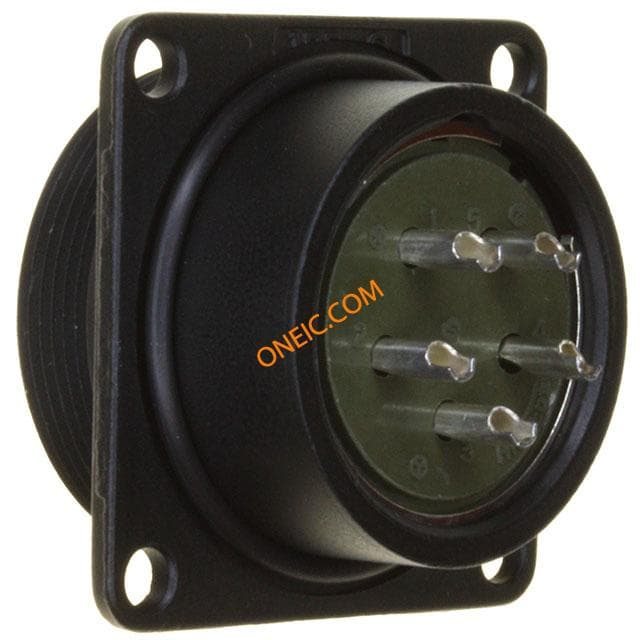

JR25WR-5S(71)
