点击放大查看

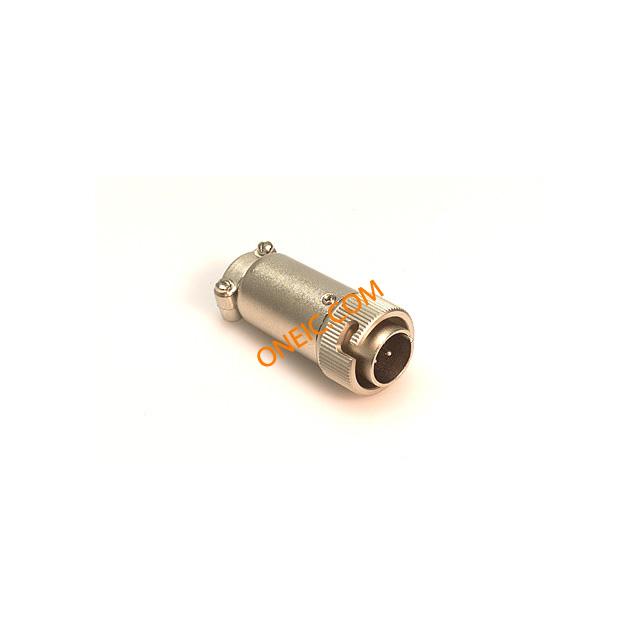

RM12BPE-3PH(71)
| Manufacturer | |
| Description | Standard Circular Connector PLUG 3P W/PIN INSERT CONN PLUG 3POS W/PIN INSERT 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts, Bayonet 3WMALEPLUGBAYONET Hirose 连接器 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 500VAC | 最大额定电流 | 5A |
机械参数
| 外形尺寸(长x宽) | 12 | 包装方式 | Bulk |
| 外壳尺寸 | 12 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 触头类型 | 公插 | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Bayonet Lock |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Metal |
| 连接器用途 | Bayonet | 触头材料 | Copper Alloy |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 第一触头极性 | Male | 触点数 | 3 |
| 位数 | 3 | 外壳尺寸-插件 | 12 |
| 外壳材料及表面处理 | Brass and Zinc, Nickel Plated | ||
产品信息
| 连接器性别 | Male | 系列 | RM |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP 67 | 工作温度 | -25°C ~ 85°C |
Documents & Media
PDF Document
PDF Document
相关型号
RM12BRD-3S(71)
Hirose Connector
Standard Circular Connector RM 12 REC. 3P W/SOC RM 12 REC. 3 POS. W/SOCKET 3 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts, Bayonet 3WFEMALERECEPTACLE Hirose 连接器
¥27.1800
详情
RM12BRB-3S
Hirose Connector
Standard Circular Connector Bayonet F 3 POS Sold Cup ST Panel Moun CONN RECEPT 3POS SOCKET SILVER 3 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts, Bayonet
¥24.3100
详情
.jpg&w=3840&q=75)

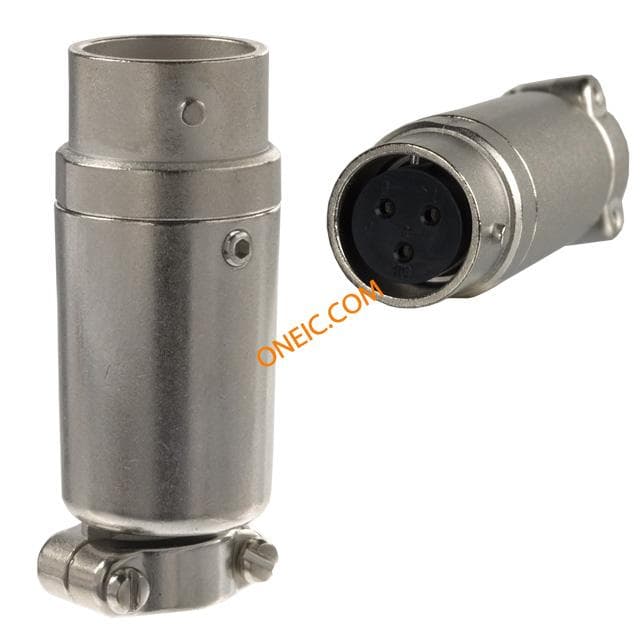

RM12BJB-3S(07)
