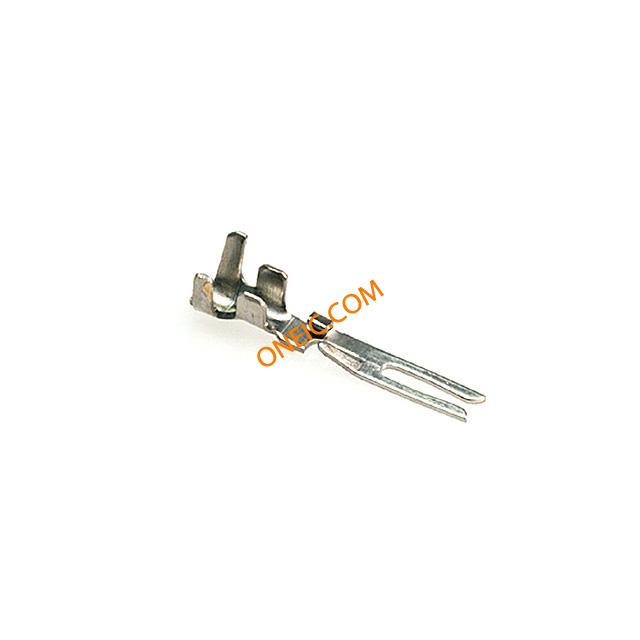

RP34L-SC1-212(01)
| Manufacturer | |
| Description | AC Power Plugs & Receptacles Contact F 1 POS Crim ST Cable Mount 1Te CONN CRIMP TERMINAL POWR SUPPLY RP34L-SC1-212(01) |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | AC Power Plugs & Receptacles | 标准包装数量 | 8,000 |
| 工厂包装数量 | 8000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 30 V | 最大额定电流 | 5 A |
机械参数
| 包装方式 | Tape & Reel (TR) | 导线线规 | 18-22 AWG |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 接触镀层 | Palladium | 安装样式 | Wire |
| 触头材料 | Brass, Phosphor Bronze | 接触件端接 | Crimp |
产品信息
| 系列 | RP34L | ||
环境参数
| 工作温度 | - 25 C to + 85 C | ||
Documents & Media
PDF Document
PDF Document
相关型号

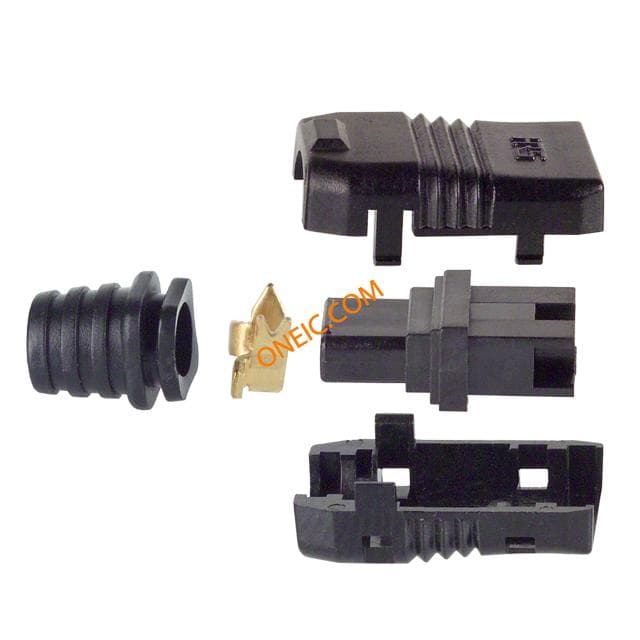

RP34L-5PA-3SC(71)
Hirose Connector
AC Power Plugs & Receptacles 3P STRAIGHT PLUG FEMALE AC POWER CONN PLUG STRAIGHT POWER SUPPLY
¥9.0600
详情
RP6-SC-TP
Hirose Connector
Hand Tools Extraction Tool Male RP6 Series EXTRACTION TOOL MALE PINS Extractor Tool For Plastic Connectors
¥40.5035
详情

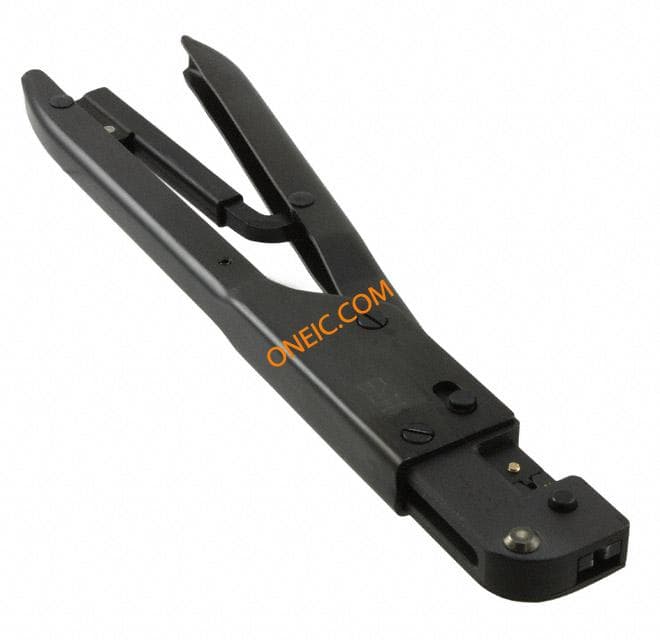

HT102/RP34L-SC1-212
