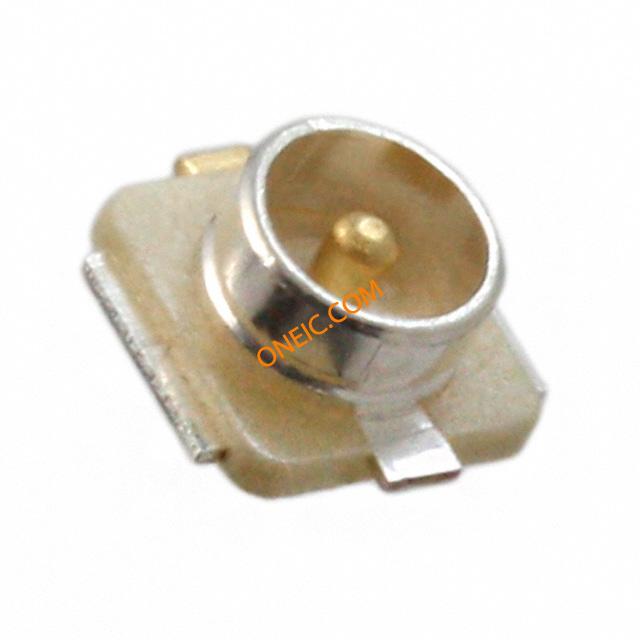

U.FL-R-SMT-1(10)
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Tradename | U.FL |
| Other Names | H11891DKR | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 2,500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Frequency | 0 → 6GHz | Impedance | 50 Ohm |
| Frequency - Max | 6GHz | Impedance (Max) (Zzt) | 50 Ohm |
| Insulation Resistance | 500 MOhms | Connector - Voltage Input | Solder |
Mechanical
| Depth | 3.1 mm | Height | 1.25 mm |
| Weight | 0.08 g | Packaging | Tape & Reel (TR) |
| Cable Type | Coaxial | Body Finish | Silver |
| Orientation | Vertical | Termination | Solder |
| Body Material | Phosphor Bronze | Housing Color | Silver |
| Mounting Type | Surface Mount | Connector Type | Jack, Male Pin |
| Contact Finish | Gold | Fastening Type | Snap-On |
| Mounting Style | Surface Mount | Plating - Body | Silver |
| Connector Style | Ultra Miniature Coaxial | Contact Material | Brass |
| Length - Overall | 3 mm | Package Quantity | 12 |
| Termination Rows | 焊接 | Connector - Cable | socket |
| Termination Style | Solder | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Liquid Crystal Polymer (LCP) |
| 1st Connector Gender | Male | Center Contact Plating | Gold |
| Exterior Housing Color | Silver | Center Contact Material | Phosphor Bronze |
| Supplier Device Package | Straight | ||
Product Info
| Spg | 12 | Type | Coaxial |
| Gender | Female | Series | U.FL |
| DELETED | Compliant | Connection Type | PCB |
| Number of Units | 1 | Other Specifications | N |
| Output Configuration | Surface Mount | ||
Environmental
| Ingress Protection | Solder | Operating Temperature | -40°C ~ 90°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- U.FL Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
