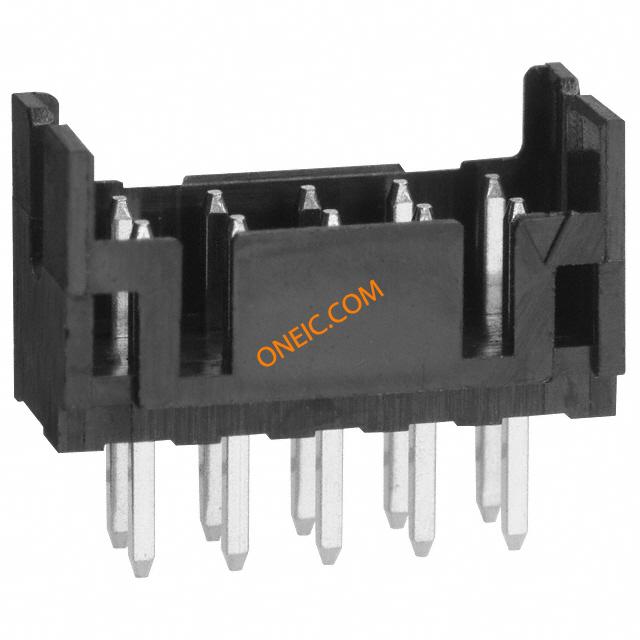

DF11-10DP-2DSA(20)

Manufacturer	Hirose Electric Co., Ltd.
Description	CONN HEADER 10POS 2MM PCB TIN
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

100

机械参数

颜色	Black	间距	0.079" (2.00mm)
包装方式	Tube	排间距	0.079" (2.00mm)
端接方式	Solder	触头类型	Male Pin
安装类型	Through Hole	连接器类型	Header, Shrouded
接触镀层	Tin	紧固类型	Detent Lock
排数	2	位数	10
接触长度 - 配合	0.118" (3.00mm)

产品信息

加载位置数

All

Documents & Media

PDF Document

DF11 Series
