DF11-18DEP-2A

Manufacturer	Hirose Electric Co., Ltd.
Description	CONN ADAPTER PLUG/PLUG 18POS 2MM Headers & Wire Housings 2MM M/M ADAPTER 18P TIN W/PNL LOCK
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

额定电压	250 V	开关功能	Panel Lock
最大额定电流	2 A

机械参数

间距	0.079" (2.00mm)	包装方式	Bag
排间距	0.079" (2.00mm)	引脚间距	0.079" (2.00mm)
安装类型	Panel Mount, Snap-In	接触镀层	Tin
排数	2	触头材料	Brass
壳体材料	Polyamide	第一触头极性	Pin (Male)
触点数	18	位数	18

产品信息

类型	Adapters	系列	DF11
产品子类型	Connectors	输出配置	Panel Mount, Snap-In
转换端（适配器端）	Plug, Male Pins	转换自（适配器端）	Plug, Male Pins

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf

相关型号

DF11-18DS-2V(20)

Hirose Connector

Headers & Wire Housings Obsolete CONN RECEPT 18POS 2MM SMD TIN

¥11.8320

详情

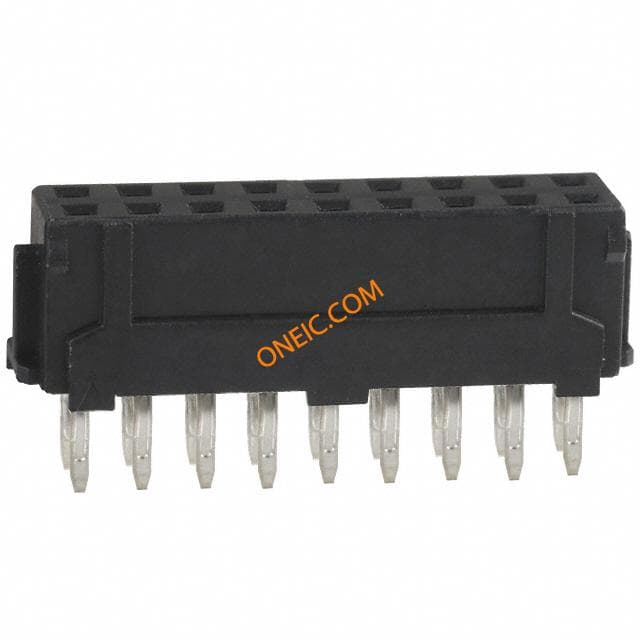

DF11-18DS-2DSA(01)
