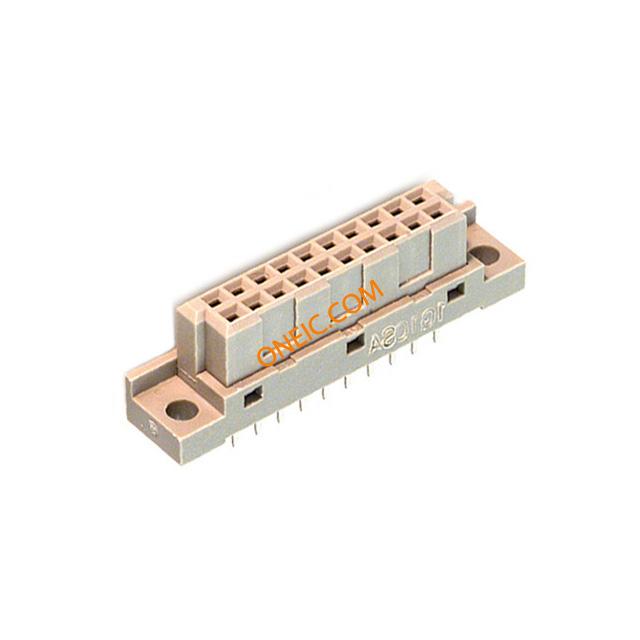

PCN10C-20S-2.54DSA
| Manufacturer | |
| Description | DIN CONN RCPT 20 POS 2 ROW STR |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 10 | ||
合规参数
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 间距 | 0.100" (2.54mm) | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 排数 | 2 | 位数 | 20 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT) | ||
产品信息
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
Documents & Media
PDF Document
相关型号
PCN10-20P-2.54DSA(72)
Hirose Connector
DIN 41612 Connectors DIN 41612 HDR 20 POS 2.54mm Solder ST Th CONN DIN HEADER 20POS DUAL STR Conn DIN 41612 HDR 20 POS 2.54mm Solder ST Thru-Hole
¥12.4440
详情

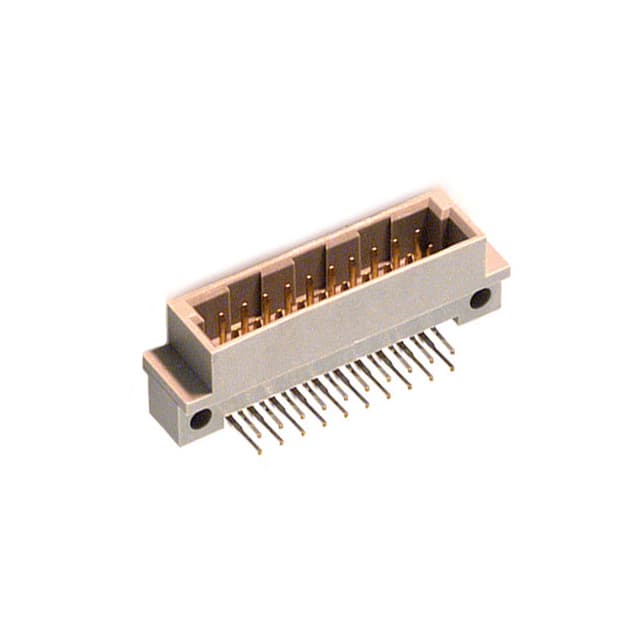

PCN10-20P-2.54DS(72)
