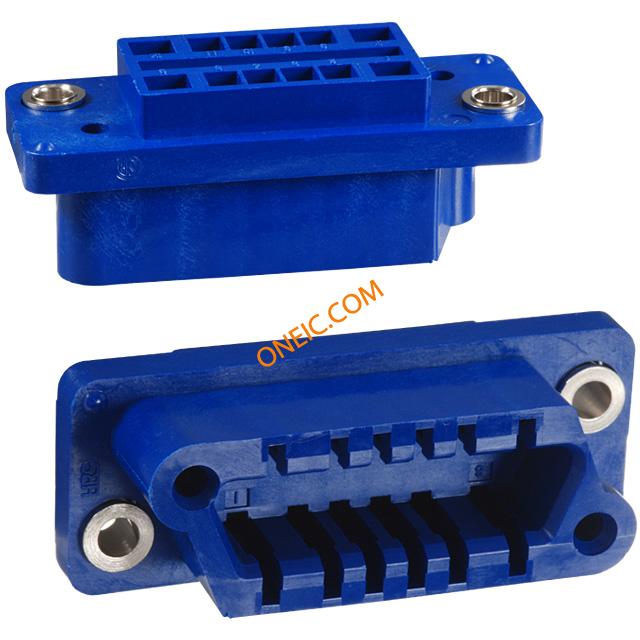

QR/P-12S-C(51)
| Manufacturer | |
| Description | CONN RECEPT HOUSING 12POS CRIMP Rack & Panel Connectors REC HSNG 12POS CRIMP Conn Housing RCP 12 POS Crimp ST Cable Mount |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 30 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 10 A | 最小供电电压 | 120VAC |
机械参数
| 颜色 | Blue | 深度 | 23.5 mm |
| 间距 | 0.177" (4.50mm) | 高度 | 24 mm |
| 包装方式 | Bulk | 导线线规 | 14-24 AWG |
| 外壳颜色 | Blue | 安装类型 | Panel Mount |
| 连接器类型 | Housing for Female Sockets | 接触镀层 | Gold |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | Rack and Panel | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 总长度 | 61 mm | 端接样式 | Crimp |
| 触点数 | 12 | 位数 | 12 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | QR/P |
| 已删除 | Compliant | 产品特性 | Mating Guide |
| 产品子类型 | Receptacle Housing | ||
环境参数
| 工作温度 | -10C to 60C | ||
