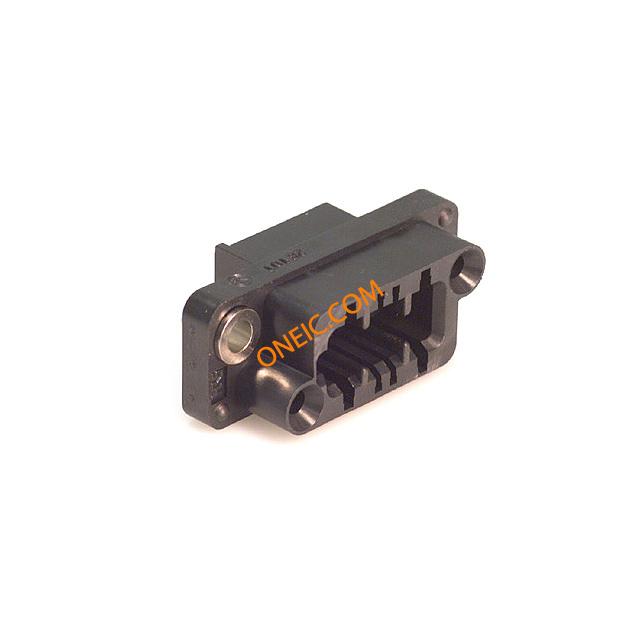

QR/P1-8S-C(51)
| Manufacturer | |
| Description | CONN SOCKET HOUSING 8 POS Rack & Panel Connectors SOC HSNG 8 POS Conn Housing SKT 8 POS 2.8mm Crimp ST Panel Mount |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 50 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 10 A | ||
机械参数
| 颜色 | Black | 深度 | 18.5 mm |
| 间距 | 0.110" (2.80mm) | 高度 | 21.5 mm |
| 包装方式 | Bulk | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | Housing for Female Sockets |
| 接触镀层 | Gold | 安装样式 | Wire |
| 排数 | 2 | 连接器样式 | Rack and Panel |
| 连接器用途 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 46.4 mm |
| 端接样式 | Crimp | 触点数 | 8 |
| 位数 | 8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | SKT | 系列 | QR/P1 |
| 已删除 | Compliant | 产品特性 | Mating Guide |
| 产品子类型 | Receptacle Housing | ||
环境参数
| 工作温度 | -10C to 60C | ||
