DF1E-2S-2.5C
| Manufacturer | |
| Description | Conn Housing SKT 2 POS 2.5mm Crimp ST Cable Mount Bag CONN RECEPT HOUSING 2POS 2.5MM DF1E Series 2.5mm 2 Way 1 Row Straight PCB Socket Panel Mount Board to Wire Headers & Wire Housings 2.5MM 2P SOCKET HOUSING |
| Category |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 3A |
机械参数
| 颜色 | White | 间距 | 2.5 mm |
| 包装方式 | Bulk | 重量（g） | 1.75 |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | Phosphor Copper |
| 壳体材料 | Polyamide | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 名称 | 塑壳 | 备注 | Contacts Not Provided |
| 类型 | Housing | 单位 | PCS |
| 连接器性别 | SKT | 系列 | DF1E |
| 数量 | 5000.0 | 产品子类型 | Receptacles / Sockets - Housings |
| 制造国家 | 日本 | 最小起订量 | 1 |
Documents & Media
相关型号
DF1EA-2EP-2.5C
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM INLINE PLUG 2P HSNG NO PNL LOCK CONN PLUG HOUSING 2POS 2.5MM Headers & Wire Housings 2.5MM INLINE PLUG 2P HSNG NO PNL LOCK Conn Housing PL 2 POS 2.5mm Crimp ST Cable Mount Bag

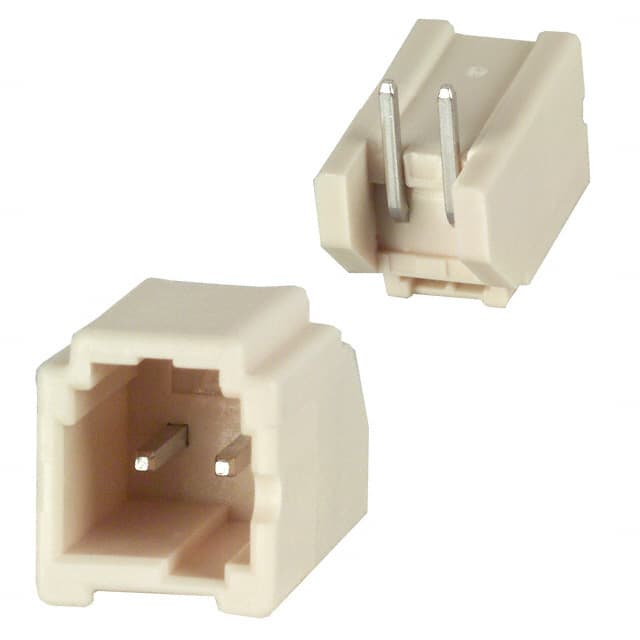

DF1E-2P-2.5DS(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM RA HEADER 2P THRU-HOLE TIN CONN HEADER 2POS 2.5MM R/A TIN Hirose DF1E Series 2.5mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5MM RA HEADER 2P THRU-HOLE TIN Conn Shrouded Header HDR 2 POS 2.5mm Solder RA Thru-Hole Bag
DF1E-2022SCF
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SCF

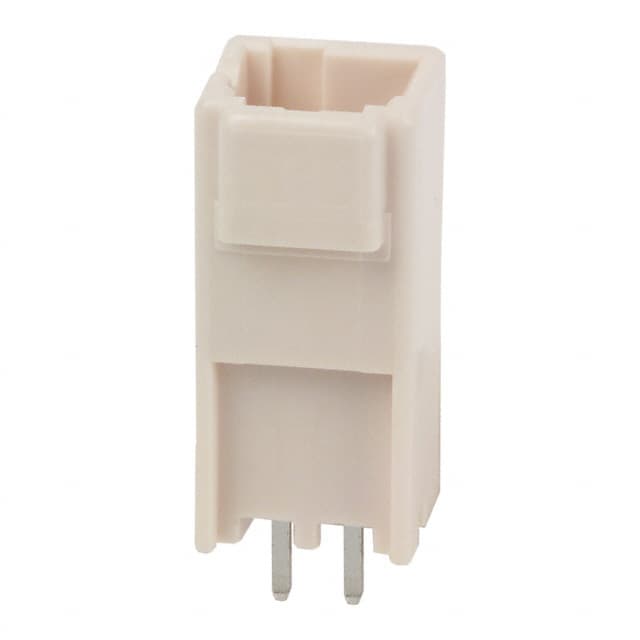

DF1EG-2P-2.5DSA
Hirose Connector
Headers & Wire Housings Obsolete CONN HEADER 2POS 2.5MM STR TIN
DF1E-2P-2.5DS
Hirose Connector
Headers & Wire Housings Obsolete CONN HEADER 2POS 2.5MM R/A TIN

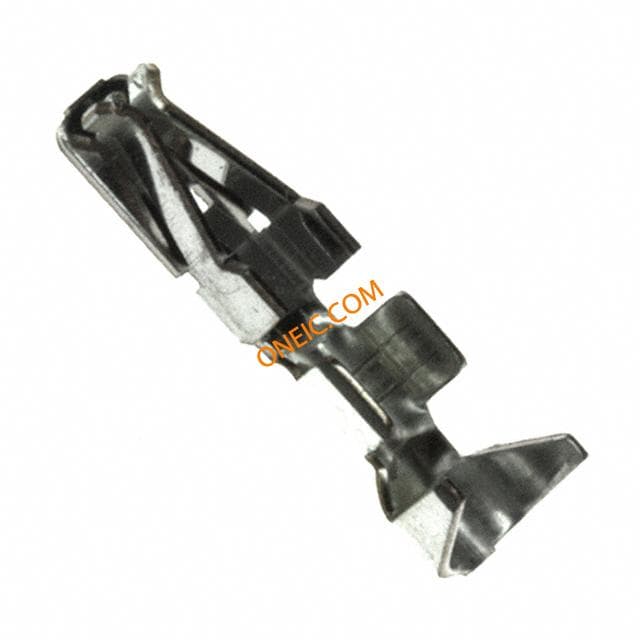

DF1E-2022SC
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SC
DF1EG-2P-2.5DSA(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM VERT HDR POT 2P PCB TIN W/O BOSS CONN HEADER 2POS 2.5MM STR TIN Headers & Wire Housings 2.5MM VERT HDR POT 2P PCB TIN W/O BOSS Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole Bag

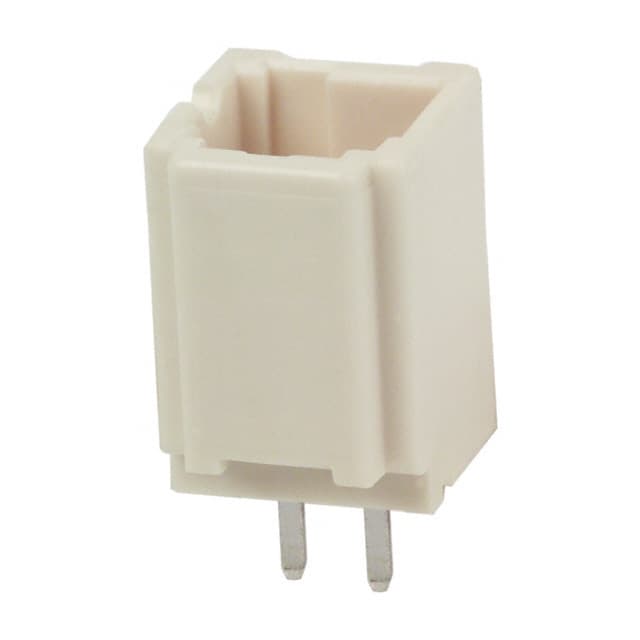

DF1EC-2P-2.5DSA(05)
Hirose Connector
Headers & Wire Housings 2.5MM VERT HDR 2P PCB TIN W/O BOSS CONN HEADER 2POS 2.5MM STR TIN Hirose DF1E Series 2.5mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole Bag

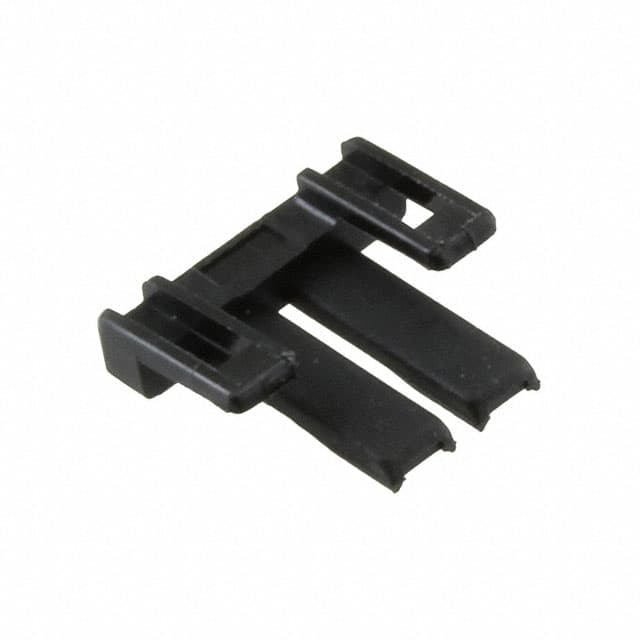

DF1E-2RS/P-2.5
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM 2P RETAINER CONN RETAINER 2POS 2.5MM connector, nylon, 2.5mm pitch, 2pole, Headers & Wire Housings 2.5MM 2P RETAINER

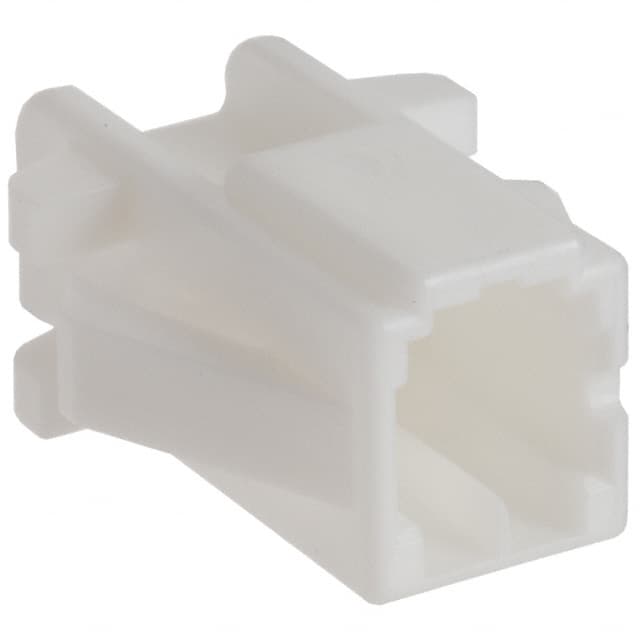

DF1E-2EP-2.5C
