934063105
| Manufacturer | |
| Description | 4mm test lead,100cm,brown,32A,60VDC TEST LEAD, 4MM, 1M, BROWN, MICRO KLEPS Hirschmann Test & Measurement 测试引线, 32A, 30 V ac, 60 V dc, 棕色, 1m长 |
| Category |
合规参数
| 海关税号 | 85444290 | 安全类别 | CAT I |
电气参数
| 额定电压 | 30 V ac, 60 V dc | 最大额定电流 | 32A |
机械参数
| 重量 | 0.05197 | 材料（通用） | :PA |
| 连接器类型 | :4mm Banana Plug, Stackable | 接触镀层 | :Nickel |
| 触头材料 | Brass, Nickel Plated Beryllium Copper | 绝缘颜色 | :Brown |
| 连接器颜色 | Brown | 引线长度 | 100cm |
| 绝缘材料 - 类型 | PVC | 第一连接器极性 | Male |
| 第二连接器性别 | Male | 第一连接器安装特征 | Straight |
| 第二连接器安装特性 | Straight | ||
环境参数
| 工作温度 | +70°C | ||
相关型号
934063106
Hirschmann Test & Measurement
4mm test lead,100cm,grey,32A,60VDC,CAT I TEST LEAD, 4MM, 1M, GREY, MICRO KLEPS Hirschmann Test & Measurement 测试引线, 32A, 30 V ac, 60 V dc, 灰色, 1m长
934063107
Hirschmann Test & Measurement
4mm test lead,100cm,white,32A,60VDC TEST LEAD, 4MM, 1M, WHITE, MICRO PRUEF Hirschmann Test & Measurement 测试引线, 32A, 30 V ac, 60 V dc, 白色, 1m长
934063109
Hirschmann Test & Measurement
4mm test lead,100cm,violet,32A,60VDC TEST LEAD, 4MM, 1M, VIOLET, MICRO PRUEF Hirschmann Test & Measurement 测试引线, 32A, 30 V ac, 60 V dc, 紫色, 1m长

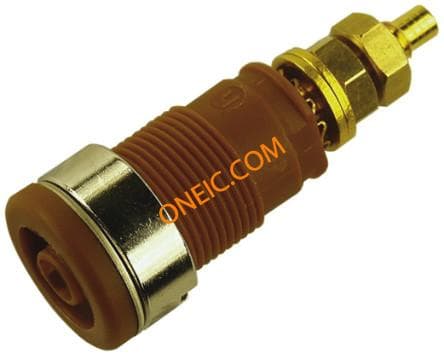

972354105
Hirschmann Test & Measurement
4mm safety panel socket,brown,32A SOCKET, 4MM, SAFETY, BROWN, MVL S Hirschmann 棕色 4mm 插座, 1000V ac/dc 32A, 镀金触点

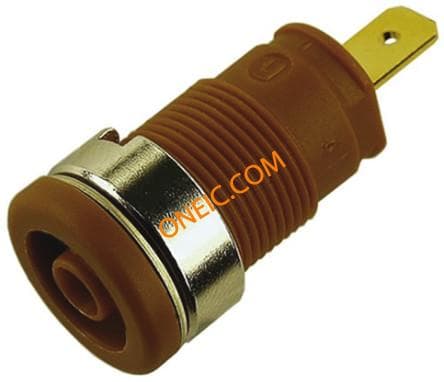

972355105
Hirschmann Test & Measurement
4mm safety panel socket,brown,25A SOCKET, 4MM, SAFETY, BROWN, MVL S Hirschmann 棕色 4mm 插座, 1000V ac/dc 25A, 镀金触点
934074100
HIRSCHMANN TEST AND MEASUREMENT
TEST LEAD, 4MM, 1M, BLACK, MSEB Hirschmann Test & Measurement 测试引线, 16A, 1000V ac/dc, 黑色, 1m长
934074101
HIRSCHMANN TEST AND MEASUREMENT
TEST LEAD, 4MM, 1M, RED , MSEB Hirschmann Test & Measurement 测试引线, 16A, 1000V ac/dc, 红色, 1m长
