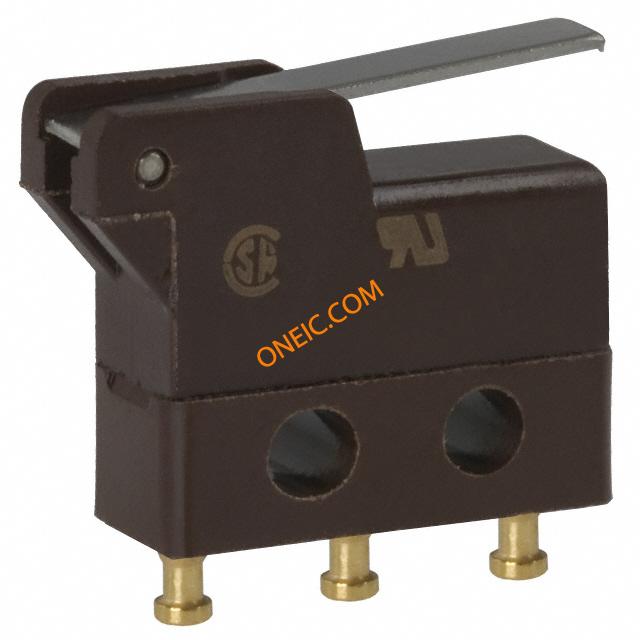

311SX1-T
| Manufacturer | |
| Description | Basic / Snap Action Switches 5A .135 LEVER Switch Snap Action N.O./N.C. SPDT Straight Lever Solder 5A 0.49N Screw Mount MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Basic Switches, MICRO SWITCH™ Standard Precision Switches SWITCH LEVER SPDT 5A SLD 125V Switch; PRECISION; Basic; Actuator-STRAIGHT LEVER; 5 AMPS; Solder TerminalS Switch Snap Action N.O./N.C. SPDT Straight Lever Solder 5A 0.49N Screw Mount Product Highlights:Long operating lifeElongated mounting hole for easier, more accurate mountingChoice of actuation (plunger, as well as a variety of integral and auxiliary actuators)Choice of electrical termination (solder, quick connect, PCB)Choice of operating characteristics Optional series constructions available (gold contacts for low energy switching, bifurcated gold contacts for maximum reliability, power load switching capability to 7 A)MIL-PFR-8805 qualified listings availablePotential Applications:AerospaceAppliancesVending machinesTiming devicesOffice equipmentComputer/business equipmentTest instrumentsMedical/dental equipmentCommunications equipmentHVAC equipmentManually operated devicesValves Switch,PRECISION,Basic,Actuator-STRAIGHTLEVER,5AMPS,SolderTerminalS SX Series Subminiature Basic Switch, Single Pole Double Throw (SPDT), 250 Vac, 5 A, Straight Lever Actuator, Solder Termination |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 商标名 | Microswitch |
| 子类别 | Switch Snap Action | 产品类别 | Basic / Snap Action Switches |
| 标准包装数量 | 30 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULRecognized,CSACertified | ||
电气参数
| 电路 | SPDT | 额定电压 | 250 V |
| 极数 | 1 | 开关功能 | On-Mom |
| 差动行程 | 0.020" (0.5mm) | 最大额定电流 | 5 A |
| 开关功能/额定值 | N.O./N.C. | ||
机械参数
| 深度 | 5.1 mm | 高度 | 13.6 mm |
| 包装方式 | Bulk | 预行程 | 0.065" (1.65mm) |
| 超行程 | 0.014" (0.35mm) | 本体表面处理 | Subminiature |
| 端接方式 | SolderLugs | 触点形式 | SPDT |
| 致动器类型 | Lever | 安装类型 | Screw Mount |
| 释放力 | 9gf | 端子类型 | Solder |
| 安装样式 | Screw | 操作力 | 0.49 N |
| 壳体材料 | Phenolic/N/A | 总长度 | 14.35 mm |
| 端接样式 | Screw | 按钮样式/尺寸 | Straight Lever |
| 位数 | 2 | 安装孔直径 | 0.09" |
| 开关驱动电平 | SPDT | 外壳与棱镜材料 | Phenolic/N/A |
产品信息
| 类型 | Basic | 产品特性 | HighTemperature |
| 制造商全称 | SXSeries | 工作高度 | 0.332" (8.43mm) |
环境参数
| 机械寿命 | 10,000,000 Cycles | 防护等级 | * |
| 工作温度 | -55°C ~ 125°C | 结工作温度 | 121C |
