Business
| Product | Potentiometer | Standard Pack | 100 |
| Product Category | Potentiometers | Standard Package | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Linearity | ±0.3% | Tolerance | 10 % |
| Resistance | 10 kOhms | Element Type | Wirewound |
| Power (Watts) | 2W | Power - Rated | 2 W |
| Voltage Rating | 450 V | Resistance (Ohms) | 10k |
Mechanical
| Depth | 25.4 | Taper | Linear |
| Height | 68.26 | Rotation | 3600° |

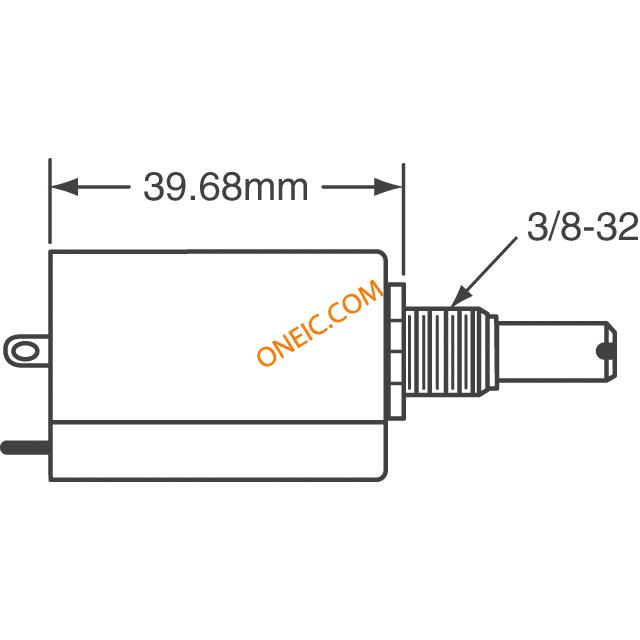

| Packaging | Bulk | Size - Body | Round - 0.875" Dia x 1.563" L (22.22mm x 39.69mm) |
| Actuator Type | Slotted Shaft | Mounting Type | Panel Mount |
| Mounting Style | Panel | Shaft Diameter | 6.32 |
| Actuator Length | 0.937" (23.81mm) | Diameter - Shaft | 0.25" |
| Length - Overall | 22.23 | Material - Blade | Wirewound |
| Actuator Diameter | 0.249" (6.32mm) | Termination Style | Solder Lug |
| Resistive Material | Wirewound | Terminal Block Type | SolderLug |
| Length - Shaft and Bearing | 23.81 mm | ||
Product Info
| Type | Wirewound Precision, MultI-Turn | Series | 62 |
| Technology | Wirewound | Adjustment Type | Top Adjustment |
| Number of Turns | 10 | ||
Environmental
| Switching Cycles | 50000Cycles | Operating Temperature | - 55 C to + 85 C |
| Temperature Coefficient | 20 PPM / C | Operating Temperature - Junction | 120°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 62JA Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
