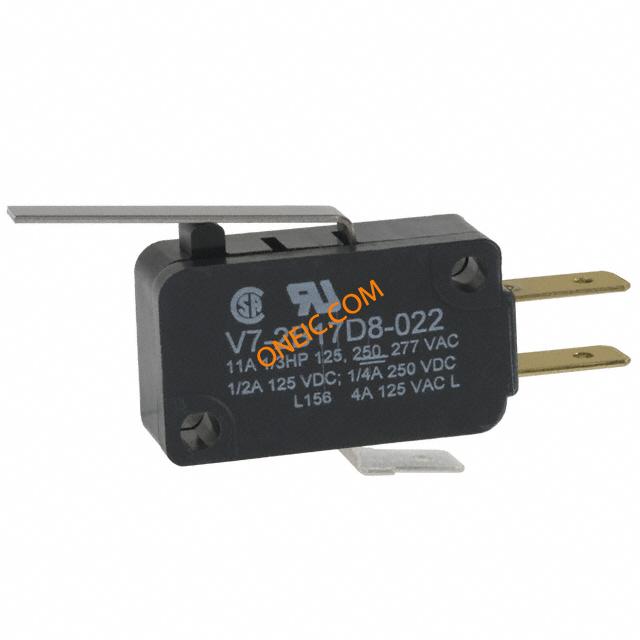

V7-2B17D8-022
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Microswitch | Product Category | Basic / Snap Action Switches |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed,CSACertified | ||
Electrical
| Circuit | SPDT | Voltage Rating | 277 V |
| Number of Poles | 1 | Switch Function | On-Mom |
| Voltage - Rated AC | 277V VAC | Differential Travel | * |
| Current Rating (Max) | 11 A | Voltage - Input (Min) | 277 |
| Switch Function/Rating | N.O./N.C. | ||
Mechanical
| Depth | 10.2 mm | Height | 15.9 mm |
| Packaging | * | Pretravel | * |
| Overtravel | * | Body Finish | Miniature |
| Termination | QCTabs | Contact Form | SPDT |
| Actuator Type | Lever | Mounting Type | Screw Mount |
| Release Force | * | Terminal Type | Quick Connect |
| Mounting Style | Screw | Shell Material | Polyester |
| Operating Force | 0.4 N | Contact Material | Silver |
| Housing Material | N/A/Polyester | Length - Overall | 28.8 mm |
| Termination Style | Conduit (0.75 in) | Actuator Style/Size | Straight Lever |
| Number of Positions | 2 | Mounting Hole Diameter | 0.114" |
| Switch Actuation Level | SPDT | Material - Housing & Prism | N/A/Polyester |
Product Info
| Type | Basic | Features | * |
| Manufacturer | V7Series | Electrical Life | * |
| Operating Position | * | ||
Environmental
| Mechanical Life | * | Ingress Protection | * |
| Operating Temperature | * | Operating Temperature - Junction | 82C |
