CY8C3866PVI-070
| Manufacturer | |
| Description | PSOC 3 SSOP PSOC 3 8051 CMOS 48-Pin SSOP Programmable Systems on a Chip 64K Flash 67MHz 8051 0.5V to 5.5V PSOC3, 8BIT, 8051, 64K FLASH, 48SSOP 8-bit Microcontrollers - MCU 64K Flash 67MHz 8051 0.5V to 5.5V |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | PSoC | Factory Pack Quantity | 30 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
Electrical
| RAM Size | 8KB | Core Size | :8bit |
| Core Type | 8051 | Interface | I2C/SPI/UART |
| Clock Rate | 67 MHz | EEPROM Size | :2KB |
| Memory Size | 8 KB | Number of I/O | 29 |
| Voltage Rating | 1.8 | Clock Frequency | :67MHz |
| Oscillator Type | :External, Internal | Voltage - Supply | 0.5 V to 5.5 V |
| Program Memory Size | 64KB | Program Memory Type | Flash |
| Voltage - Supply (Min) | 5.5 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 7.59(Max) | Weight | 0.002 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :48 | Package / Case | SSOP-48 |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 16(Max) |
| Package Quantity | SSOP | Number of Positions | 48 |
| Shell Size - Insert | 2.34(Max) | Number of Cores/Bus Width | 8 bit |
Product Info
| Type | Programmable System-On-Chip | Series | CY8C3866PVI |
| Technology | CMOS | Peripherals | :ADC, Comparator, LCD Driver, PWM, Timer |
| Number of Timers | 4 | Controller Series | :CY8C38xxx |
| RF Family/Standard | PSoC 3 | DigiKey Programmable | Yes |
| Printed Circuit Board | 48 | ||
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

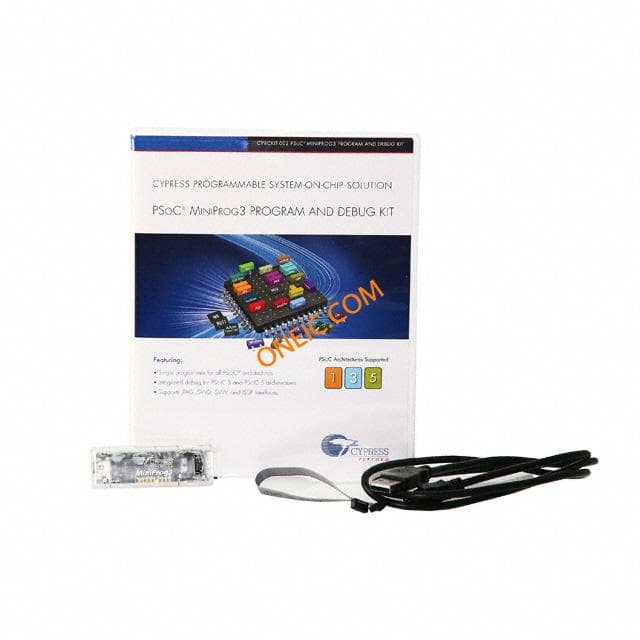

CY8CKIT-002
