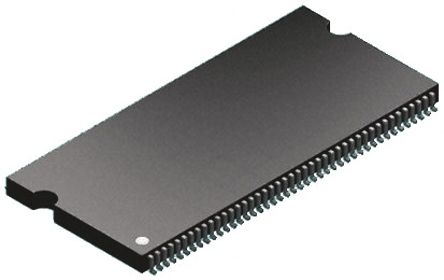

IS42S32800D-7TL
| Manufacturer | |
| Description | DRAM Chip SDRAM 256M-Bit 8Mx32 3.3V 86-Pin TSOP-II IC SDRAM 256MBIT 143MHZ 86TSOP DRAM 256M (8Mx32) 143MHz SDRAM, 3.3v , 256Mbit 143MHz SDRAM, 3 → 3.6 V, 86针 TSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | DRAM | Standard Package | Trays |
| Factory Pack Quantity | 108 | Standard Package Name | TSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Speed | 143MHz | Interface | Parallel |
| Clock Rate | 143 MHz | Access Time | 6.5|5.4 ns |
| Memory Size | 256M (8M x 32) | Memory Type | SDRAM |
| Voltage Rating | 3 | Data Rate (Max) | 143MHz |
| Current - Output | 150 mA | Voltage - Supply | 3.3 V |
| Current Rating (Max) | 150 mA | Voltage - Supply (Min) | 3 V |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 10.29mm | Height | 1.05mm |
| Length | 22.42mm | Packaging | Tray |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 86 |
| Package / Case | 86TSOP-II | Package Cooled | TSOP-II |
| Length - Overall | 22.42(Max) | Package Quantity | TSOP-II |
| Size / Dimension | 22.42 x 10.29 x 1.05mm | Number of Positions | 4 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 86-TSOP II |
| Number of Cores/Bus Width | 32 bit | ||
Product Info
| Type | SDRAM | Series | IS42S32800D-7 |
| DELETED | Compliant | Density | 256 Mb |
| Bit Count | 32Bit | Structure | 8M x 32 位 |
| Manufacturer | 8Mx32 | Memory Format | RAM |
| Bus Connection | 13 b | Number of Addresses | 13 Bit |
| Number of Characters | 8M | Printed Circuit Board | 86 |
| RAM Capacity/Installed | 256Mbit | ||
Environmental
| Operating Temperature | 0 to 70 °C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- 42-45S32800D.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
