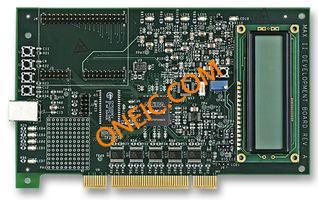

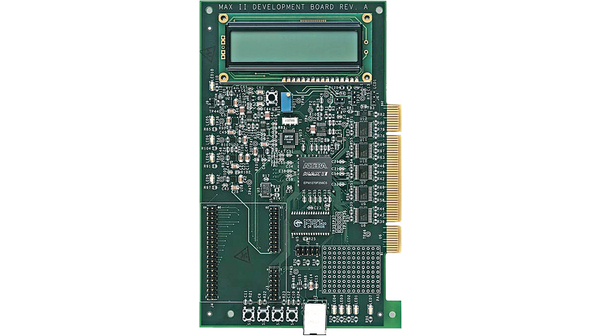

DK-MAXII-1270N

点击放大查看

DK-MAXII-1270N

Manufacturer
Intel Corporation
Description
MAX II Development Kit KIT DEV MAXII W/EPM 1270N MAX II CPLD Development Board Programmable Logic IC Development Tools CPLD Development Kit For EPM1270F256 MAX II, EPM1270, CPLD, DEV KIT Development kit: Altera; EPM1270F256C5N; JTAG, PCI, USB Development kit, DK-MAXII-1270N, Altera
Category
嵌入式系统与开发工具嵌入式开发工具评估与开发套件
对参数有疑问？问 AI 助手

商业参数

产品Development Kits商标名Max
标准包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
海关税号85423190

电气参数

存储器Vol - SRAM核心类型:CPLD
接口JTAG, PCI, USB供电电压2.5 V/3.3 V
元件数量:EPM

机械参数

深度:50mm宽度:130mm
高度:160mm重量:0.4kg
供货尺寸Altera

产品信息

类型CPLD系列Max II
内容Dev Board, Quartus®II Web Edition, Nios®II Web Edition, Cables, Accessories, Reference Designs and Demos产品特性http://www.altera.com/literature/ug/ug_MAX_II_devel_kit.pdfhttp://download.siliconexpert.com/pdfs/2008/06/03/semi_ap/manual/alt/htm...
功能MAX II development kit硬件配件USB Cable
套件类型Altera软件Quartus II
技术CPLD架构PLD/FPGA

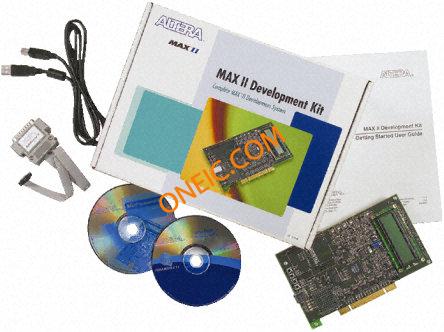

套件内容:Development Board, Cables and Accessories, Reference Designs and Demos制造商全称:MAX II
显示样式LCD 2x16 characters按键数4
单元数量1工具类型/特性EPM1270F256C5N
电路数EPM1270F256C5N芯片组制造商:Altera
支持MCU系列:MAX II适用产品/相关产品MAX®II CPLDs

Documents & Media

PDF Document
MAX II Dev Kit
PDF Document
ug_MAX_II_devel_kit.pdf

相关型号

EPM1270T144I5

EPM1270T144I5

Intel Corporation

CPLD MAX II Family 980 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V 144-Pin TQFP IC CPLD 980MC 6.2NS 144TQFP CPLD - Complex Programmable Logic Devices CPLD - MAX II 980 Macro 116 IO

¥297.2960
详情
EPM1270GT144C3

EPM1270GT144C3

Intel Corporation

CPLD MAX II Family 980 Macro Cells 304MHz 0.18um Technology 1.8V 144-Pin TQFP IC CPLD 980MC 6.2NS 144TQFP CPLD - Complex Programmable Logic Devices CPLD - MAX II 980 Macro 116 IOs

详情
EPM1270T144C5N

EPM1270T144C5N

Intel Corporation

CPLD MAX II Family 980 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V 144-Pin TQFP IC CPLD 980MC 6.2NS 144TQFP EPM1270T144C5N, CPLD MAX II Flash 980 Cells, 116 I/O, 127 Labs, ISP, 2.375 to 3.6V 144-Pin TQFP CPLD - Complex Programmable Logic Devices CPLD - MAX II 980 Macro 116 IO MAX II ISP CPLD 1270, SMD, TQFP144 CPLD, MAXII ISP1, SMD, TQFP144, WAFFLE30 Integrated circuit: CPLD; 1.27k; 5ns; TQFP144; Series: Max II Programmable logic IC TQFP-144, EPM1270T144C5N, Altera

¥461.7880
详情
EPM1270T144C3

EPM1270T144C3

Intel Corporation

CPLD MAX II Family 980 Macro Cells 304MHz 0.18um Technology 2.5V/3.3V 144-Pin TQFP IC CPLD 980MC 6.2NS 144TQFP CPLD - Complex Programmable Logic Devices CPLD - MAX II 980 Macro 116 IO

详情
EPM1270T144C3N

EPM1270T144C3N

Intel Corporation

CPLD MAX II Family 980 Macro Cells 304MHz 0.18um Technology 2.5V/3.3V 144-Pin TQFP IC CPLD 980MC 6.2NS 144TQFP CPLD - Complex Programmable Logic Devices CPLD - MAX II 980 Macro 116 IO MAX II ISP CPLD 1270, SMD, TQFP144

详情
EPM1270GT144C4N

EPM1270GT144C4N

Intel Corporation

CPLD MAX II Family 980 Macro Cells 247.5MHz 0.18um Technology 1.8V 144-Pin TQFP IC CPLD 980MC 6.2NS 144TQFP EPM1270GT144C4N, CPLD MAX II Flash 980 Cells, 212 I/O, 1270 Labs, 6.2ns, ISP, 3 to 3.6V 144-Pin TQFP CPLD - Complex Programmable Logic Devices CPLD - MAX II 980 Macro 116 IOs CPLD, MAX II, 1270 ELEMENTS, 144TQFP144

详情
EPM1270T144I5N

EPM1270T144I5N

Intel Corporation

CPLD MAX II Family 980 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V 144-Pin TQFP IC CPLD 980MC 6.2NS 144TQFP EPM1270T144I5N, CPLD MAX II Flash 980 Cells, 116 I/O, 127 Labs, ISP, 2.375 to 3.6V 144-Pin TQFP CPLD - Complex Programmable Logic Devices CPLD - MAX II 980 Macro 116 IO CPLD, MAX II, 1270 ELEMENTS, TQFP144 Integrated circuit: CPLD; 1.27k; 5ns; TQFP144; Series: Max II

¥525.3000
详情

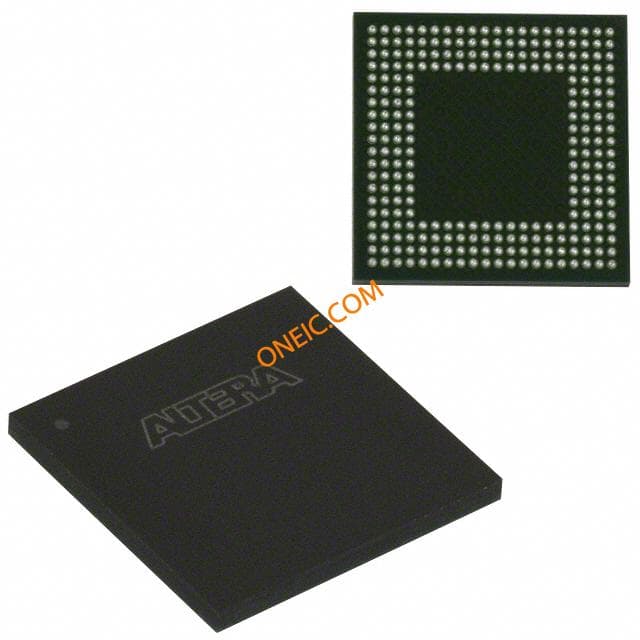

EPM1270M256C4N

EPM1270M256C4N

Intel Corporation

CPLD MAX II Family 980 Macro Cells 247.5MHz 0.18um Technology 2.5V/3.3V 256-Pin Micro FBGA IC CPLD 980MC 6.2NS 256MBGA CPLD - Complex Programmable Logic Devices CPLD - MAX II 980 Macro 212 IO

详情

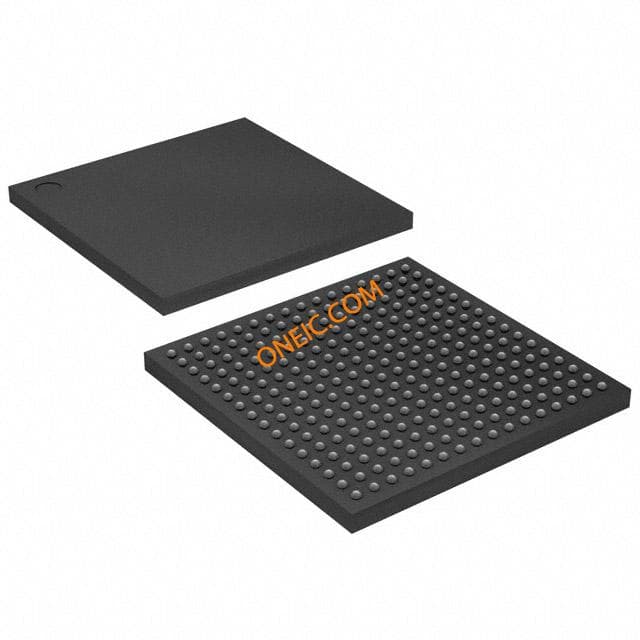

EPM1270GF256I5
