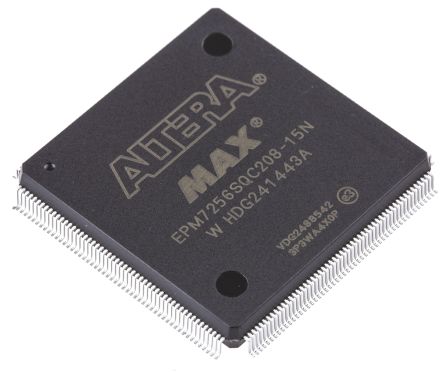

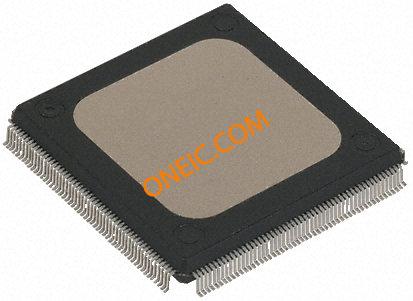

EPM7256SQC208-15N
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MAX 7000 | Standard Package | 48 |
| Factory Pack Quantity | 48 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Delay Time | 7.5 ns | Memory Type | EEPROM |
| Number of I/O | 164 | Voltage - I/O | 164 |
| Voltage Rating | 4.75 V | FPGA Core Cells | 256 |
| Frequency - Max | 128.2 MHz | Output Function | 是 |
| Voltage - Supply | 3.3 V | Program Memory Type | EEPROM |
| Delay Time tpd(1) Max | 15.0ns | Voltage - Supply (Min) | 5.25 V |
| Propagation Delay (Max) | 7.5 ns | Voltage Supply - Internal | 4.75 V ~ 5.25 V |
| Propagation Delay tpLH / tpHL (Max) | 15 | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 28mm | Height | 3.4mm |
| Length | 28mm | Packaging | Tray |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 208 |
| Package / Case | 208-BFQFP | Package Cooled | PQFP |
| Writable Memory | Yes | Length - Overall | 28 |
| Output Connector | Yes | Package Quantity | PQFP |
| Size / Dimension | 28 x 28 x 3.4mm | Number of Positions | 208 |
| Shell Size - Insert | 3.4 | Supplier Device Package | 208-PQFP (28x28) |
Product Info
| Series | MAX 7000 | Function | Y |
| Manufacturer | Intel / Altera | Programmable | 是 |
| Number of Gates | 5000 | Programmable Type | In System Programmable |
| RF Family/Standard | MAX 7000S | Number of LABs/CLBs | 16 |
| DigiKey Programmable | Yes | Number of Macrocells | 256 |
| In System Programming | Yes | Printed Circuit Board | 208 |
| Number of Inputs and Type | 164 | Number of Logic Elements/Blocks | 16 |
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- 208-PQFP Pkg Info
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
