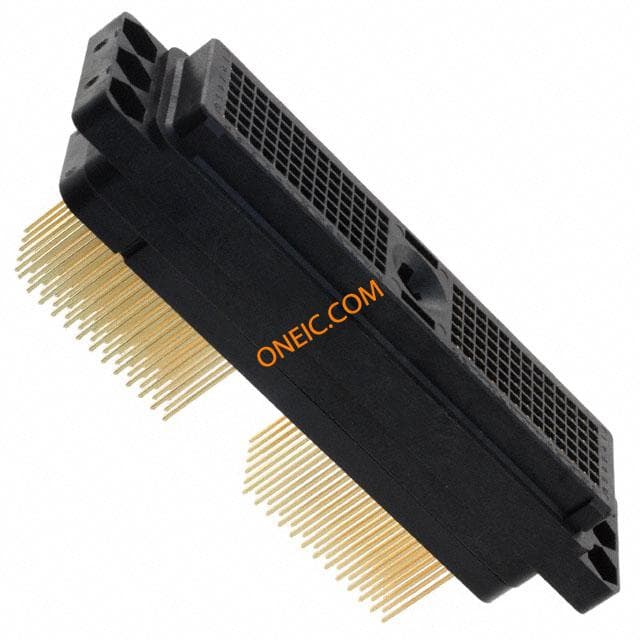

DL1-156PW6A
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Depth | 24.9 mm |
| Pitch | 2.54 mm | Height | 77.91 mm |
| Packaging | Bulk | Termination | Solder |
| Weight (g): | 94.00000 | Mounting Type | Through Hole |
| Connector Type | Plug, Hermaphroditic Contacts | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 6 |
| Connector Style | Drawer | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 108 mm |
| Termination Style | Solder | 1st Contact Gender | PIN |
| Number of Contacts | 156 | Number of Positions | 156 |
| Contact Finish Thickness | 50µin (1.27µm) | ||
Product Info
| Type | Rectangular | Gender | PL |
| Features | Actuating Camshaft | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 105C | ||
