FI-RC3-1A-1E-15000
| Manufacturer | |
| Description | FFCおよびFPC コネクタ CRIMP TERM 36-30AWG CONN PIN 30-36AWG CRIMP GOLD FFC & FPC Connectors CRIMP TERM 36-30AWG Conn;Rect;FFC/FPC;1Cont;Crimp;FI-Rseries;36-30AWG MALE CRIMP UPPERCONT AWG 30-36 |
| Category |
Business
| Other Names | 670-1194-1 | Product Category | FFC & FPC Connectors |
| Standard Package | 15,000 | Factory Pack Quantity | 15000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current Rating (Max) | 700 mA | ||
Mechanical
| Pitch | 1.25 mm | Packaging | Tape & Reel (TR) |
| Wire Gauge | 30-36 AWG | Pitch - Post | MALE |
| Pin or Socket | Non-Gendered | Contact Finish | Gold |
| Number of Rows | 01 | Contact Material | Phosphor Bronze |
| Termination Style | Crimp | Number of Contacts | 01 |
| Contact Termination | Crimp | Contact Layout, Typical | Top Contact |
| Contact Finish Thickness | 3.9µin (0.10µm) | Contact Material - Plating | STRAIGHT |
Product Info
| Gender | Male | Series | FI-R |
| Terminstyle | CRIMP | Product Type | Contacts |
Environmental
| Temperature Range | - 40 C to + 80 C | ||
Documents & Media
Similar Parts

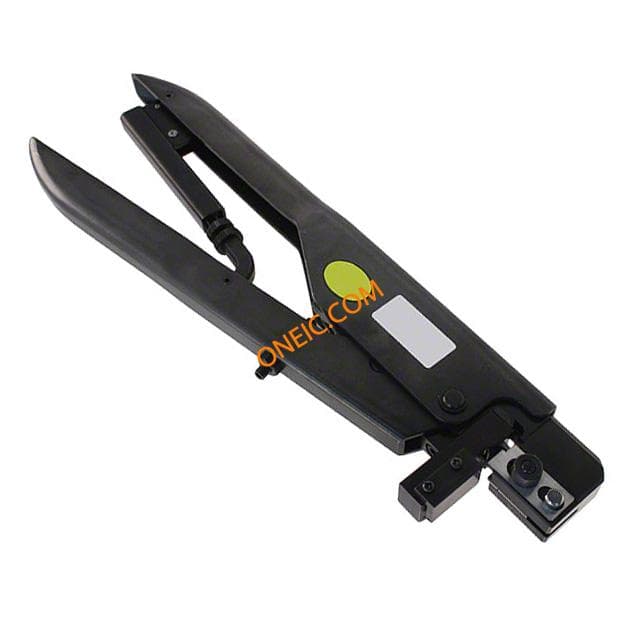

CT150-4C-FIR
JAE Electronics
Crimpers Crimp tool FIR Series TOOL HAND FOR THE FI-R SERIES

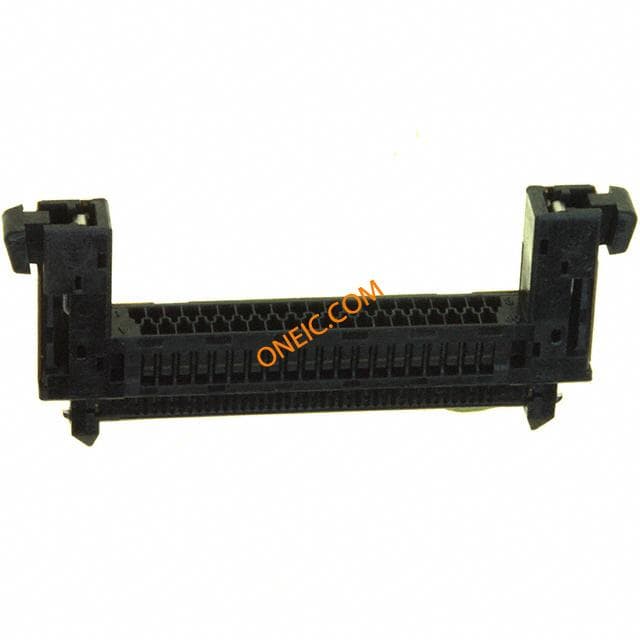

FI-RE41HL
JAE Electronics
FFC & FPC Connectors 41P Plug PCB to Cable CONN PLUG 0.5MM 41POS 41P HOUSING 0,50MM AWG 30-36
FI-RE51HL
JAE Electronics
FFC & FPC Connectors 51P PLUG CONN PLUG 0.5MM 51POS Conn;Rect;FFC/FPC;Plug;51Cont;Solder;FI-Rseries;0.5mmPin-Spng;Straight 51 WAY HOUSING LOCKING

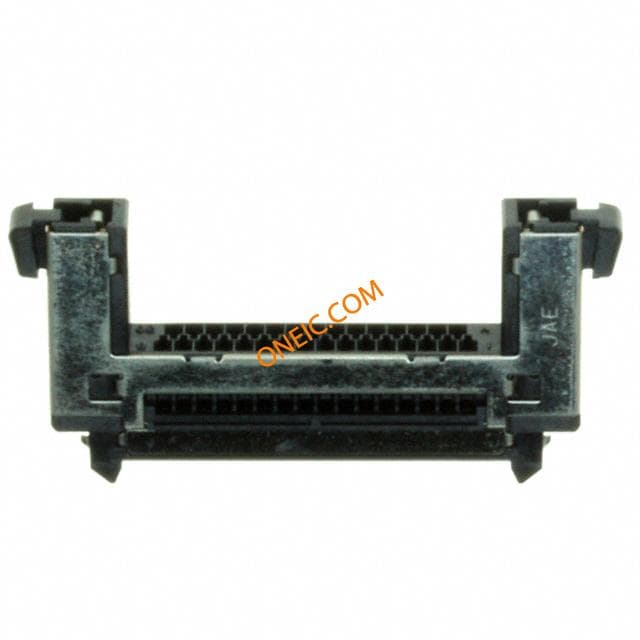

FI-RE31HL
JAE Electronics
FFC & FPC Connectors 31P Plug PCB to Cable CONN PLUG 0.5MM 31POS

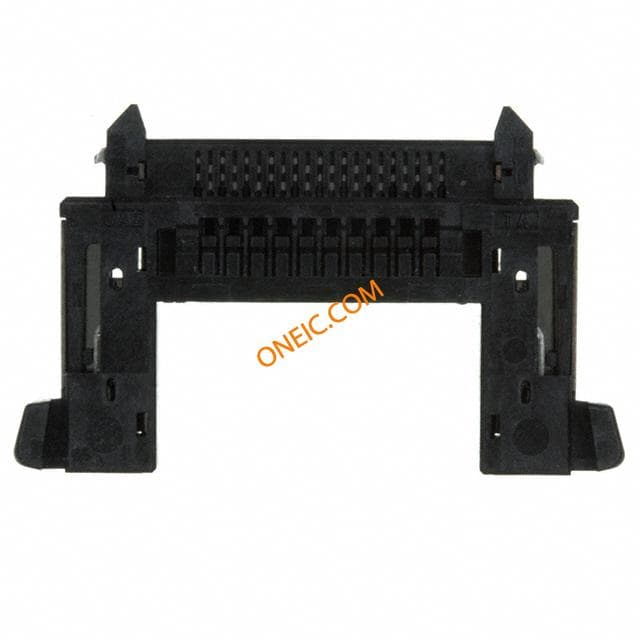

FI-RE21HL
JAE Electronics
FFCおよびFPC コネクタ 21P Plug PCB to Cable CONN PLUG 0.5MM 21POS FFC & FPC Connectors 21P Plug PCB to Cable

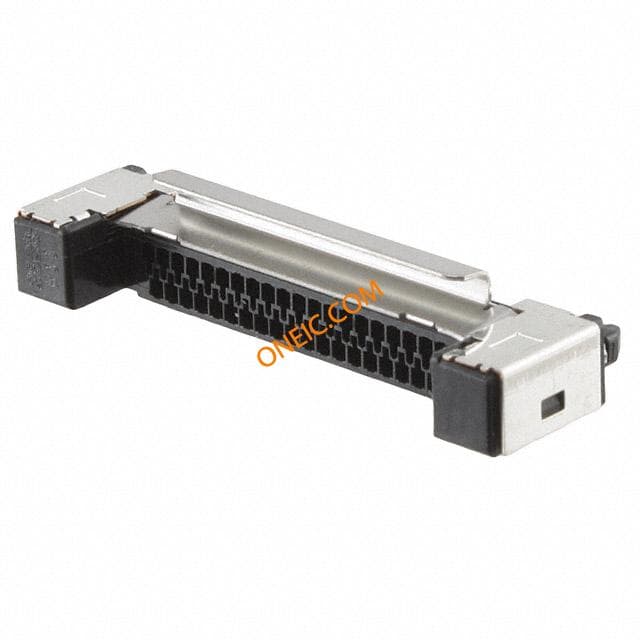

FI-RE41HLS-M
