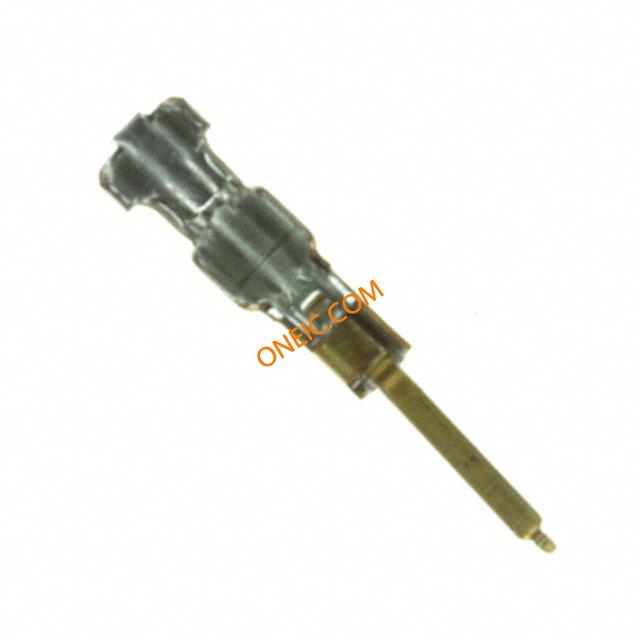

FI-RC3-1B-1E-15000
| Manufacturer | |
| Description | FFC & FPC Connectors Lower contact AWG# 30 32 36 CONN PIN 30-36AWG CRIMP GOLD PCBTOCABLEPLUG-LCDCOMPATIBLE15000pcreel |
| Category |
Business
| Other Names | 670-1195-1 | Product Category | FFC & FPC Connectors |
| Standard Package | 15,000 | Factory Pack Quantity | 15000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 700 mA | Insulation Resistance | 100 MOhms |
Mechanical
| Pitch | 0.5 mm | Packaging | Tape & Reel (TR) |
| Wire Gauge | 30-36 AWG | Termination | Crimp |
| Pin or Socket | Non-Gendered | Angle of Throw | Straight |
| Contact Finish | Gold | Contact Material | Phosphor Bronze |
| Length - Overall | 6mm | Primary Material | BoardtoCable |
| Termination Style | Crimp | Contact Termination | Crimp |
| Contact Layout, Typical | Bottom Contact | Contact Finish Thickness | 3.9µin (0.10µm) |
Product Info
| Type | PCBPlug | Gender | Male |
| Series | FI-R | Features | LCDCompatible |
| Manufacturer | FISeries | Product Type | Contacts |
Environmental
| Temperature Range | - 40 C to + 80 C | Operating Temperature | -40to+80°C |
Documents & Media
