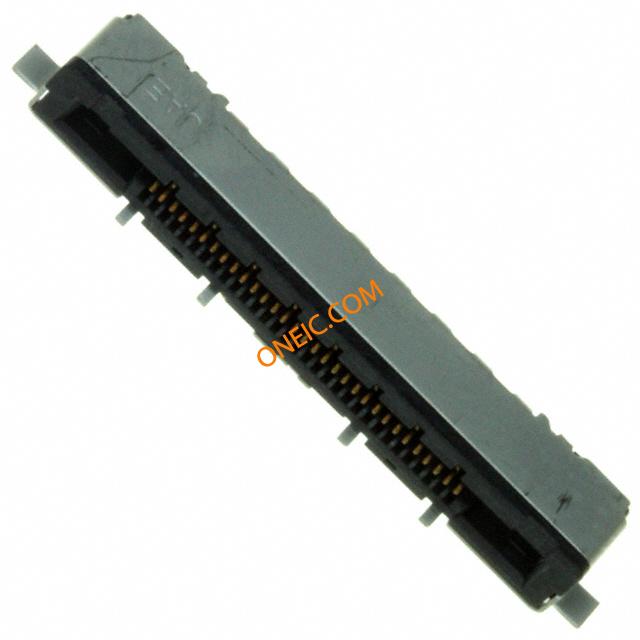

FI-RE31S-HF
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 132 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 800 mA |
Mechanical
| Pitch | 0.020" (0.50mm) | Packaging | Tray |
| Termination | Solder | Contact Type | Female Socket |
| Length - Pin | 0.6mm | Mounting Type | Surface Mount, Right Angle |
| Angle of Throw | Right | Connector Type | Receptacle |
| Contact Finish | Gold | Housing Finish | Tin |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | Plastic | Length - Overall | 27.85mm |
| Primary Material | BoardtoCable | Pin Hole Diameter | 0.5mm |
| Termination Style | SMD | Number of Contacts | 31 |
| Number of Positions | 31 | ||
Product Info
| Type | CableSocket | Series | FI-R |
| Features | Solder Retention | Manufacturer | FISeries |
| Product Type | Board Mount | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40to+80°C | ||
Documents & Media
Similar Parts
Sourcing & traceability
- Datasheet
- FI-REx1S-HF Drawing
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
