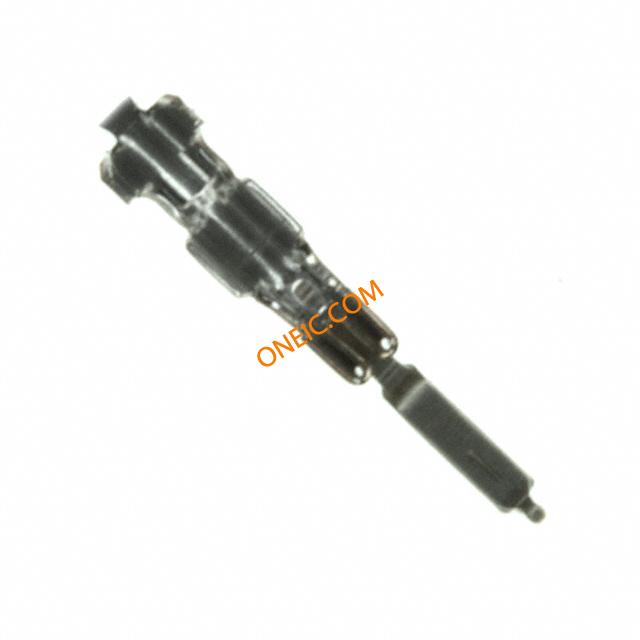

FI-XC3-1-15000
| Manufacturer | |
| Description | FFC & FPC Connectors CRIMP CONTACTS AWG 30-36 CONN PIN 30-36AWG CRIMP GOLD CONTACTSFORFI-XSERIES15000pcreel FEMALE CRIMP CONTACTS AWG 30-36 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 670-1222-1 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | 15,000 | 工厂包装数量 | 15000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | ||
电气参数
| 额定电压 | 200 V | 最大额定电流 | 1 A |
| 绝缘电阻 | 100 MOhms | ||
机械参数
| 间距 | 1 mm | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 30-36 AWG | 柱间距 | FEMALE |
| 插针或插孔 | Pin | 接触镀层 | Gold |
| 排数 | 01 | 触头材料 | Copper Alloy |
| 端接样式 | Crimp | 触点数 | 30 |
| 接触件端接 | Crimp | 开关驱动电平 | ZIF |
| 典型触点布局 | Bottom Contact | 接触镀层厚度 | 3.9µin (0.10µm) |
| 触点材料 - 镀层 | STRAIGHT | ||
产品信息
| 系列 | FI-X | 端子样式 | CRIMP |
| 产品子类型 | Contacts | ||
环境参数
| 温度范围 | - 40 C to + 80 C | 工作温度 | -40 TO 80 °C |
Documents & Media
PDF Document
相关型号
CT150-4C-FIX
JAE Electronics
Crimpers FI-X HAND CRIMP TOOL TOOL HAND FOR FIX SERIES CRIMPTOOL,FICONTACTS HAND CRIMPING TOOL FI-X
¥6276.3660
详情

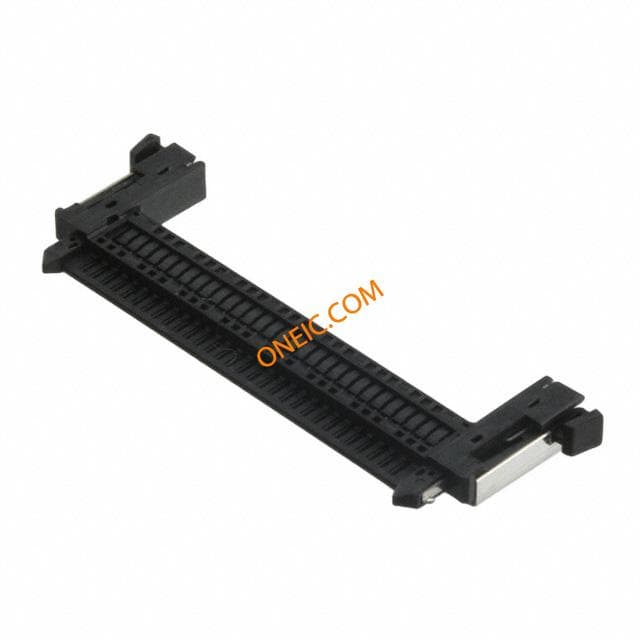

FI-E30HL
JAE Electronics
ヘッダ & ワイヤハウジング 30P 1.0MM PLUG CRIMP TYPE W/LOCK CONN PLUG 1MM 30POS CABLE CRIMP Headers & Wire Housings 30P 1.0MM PLUG CRIMP TYPE W/LOCK LOWVOLTAGEDIFFERENTIALSIGNALING(LVDS)PCBTOCABLE,1.0MMPITCH,30CONTACTS
¥23.8762
详情
FI-X30HL-T
JAE Electronics
FFC & FPC Connectors 30P Cable Plug 1mm CONN PLUG 30POS HOUSING 1MM
¥10.4482
详情

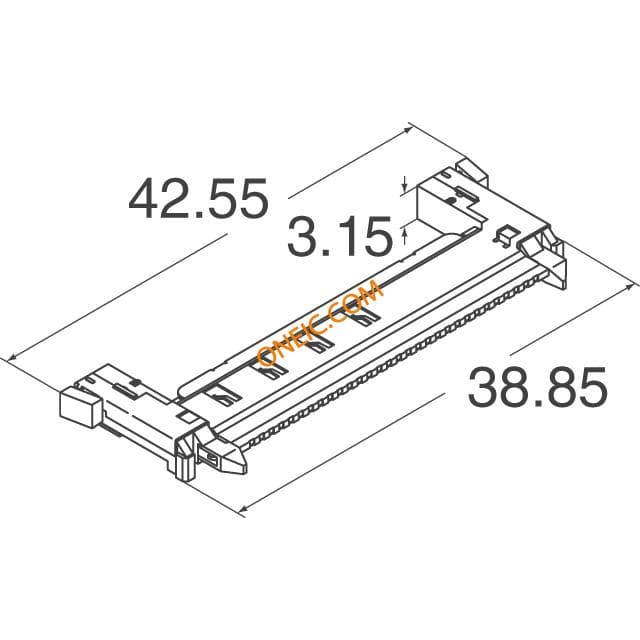

FI-E30H
