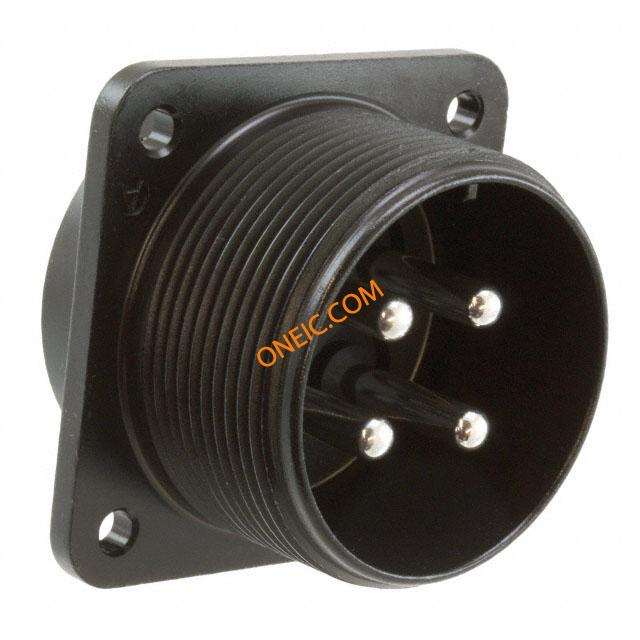

JL04HV-2E22-22PE-B-R
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 46A | ||
Mechanical
| Packaging | Bulk | Orientation | N (Normal) |
| Shell Style | Receptacle | Termination | Solder Cup |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 22-22 |
| Shell Material, Finish | Aluminum, Zinc Plated, Black | ||
Product Info
| Series | JL04V | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- SJ105352.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
